In high-stakes industrial environments, thermal management isn't just an operational detail—it's a critical safety and financial decision. Conveying superheated steam, molten polymers, or hot oil requires specialized equipment where failure is not an option. Using a standard hose in these extreme conditions is a recipe for disaster, leading to catastrophic equipment damage, costly production downtime, and severe safety risks for personnel. The wrong choice can compromise an entire operation in an instant. This guide provides a clear technical framework for procurement managers, engineers, and maintenance teams. You will learn to evaluate material science, understand pressure derating, and apply a systematic method to select the perfect high temperature solution for your specific needs, ensuring reliability and safety.
Key Takeaways
The 20°C Benchmark: Most pressure ratings are calibrated at room temperature; derating is mandatory for high-heat applications.
STAMPED Method: The industry-standard framework for error-free hose selection.
Material Specificity: Why PTFE, Silicone, and Coated Fabrics serve distinct thermal niches.
TCO over Purchase Price: How longevity and reduced maintenance cycles drive better ROI than low-cost alternatives.
The Physics of Heat: How Temperature Impacts Hose Integrity
Understanding how heat affects a hose is the first principle of safe and effective selection. Temperature fundamentally alters the physical properties of polymers and elastomers. Ignoring these changes can lead to premature failure, even if a hose appears to meet pressure specifications on paper.
Thermal Softening vs. Cold Brittleness
Extreme heat and cold have opposite effects on hose materials. As temperatures rise, the molecular chains within a hose's polymer structure gain energy and move more freely. This process, known as thermal softening, increases the hose's flexibility but simultaneously reduces its tensile strength, abrasion resistance, and ability to contain pressure. Conversely, at very low temperatures, the same polymers lose flexibility and become rigid or brittle, making them susceptible to cracking if flexed or impacted.
The Pressure-Temperature Relationship
A hose's pressure rating is almost always specified at a standard ambient temperature, typically 20°C (68°F). This is a crucial detail that is often overlooked. As the operating temperature increases, the maximum allowable working pressure (MAWP) decreases significantly. This is called "pressure derating."
For example, a hose rated for 500 PSI at 20°C might only be able to safely handle 200 PSI when conveying media at 150°C. Each material has its own unique derating curve, which should be provided by the manufacturer. Failing to account for this relationship is one of the most common causes of hose failure in high-temperature applications. You must always select a hose based on its pressure rating at the maximum operating temperature, not its room temperature rating.
External vs. Internal Heat
It's vital to differentiate between the two primary sources of heat a hose assembly will encounter:
Internal Media Temperature: This is the temperature of the fluid or gas being transferred through the hose. Hot oil, steam, or chemicals directly heat the inner tube of the hose.
External Ambient Temperature: This refers to the heat in the surrounding environment. A hose may be near a furnace, engine exhaust, or other equipment that emits significant radiant heat, even if the media it carries is cool.
In many industrial settings, a hose must withstand both internal and external heat sources simultaneously. This requires careful material selection for both the inner tube and the outer cover, and may even necessitate the use of protective sleeves or heat shields.
UL-19 and ASTM Standards
To standardize performance, industry bodies like Underwriters Laboratories (UL) and ASTM International have developed testing protocols. For instance, the UL-19 standard for fire hoses evaluates resistance to both conducted and radiant heat. Conducted heat tests might involve placing a heated object directly onto the hose, while radiant heat tests measure its performance when exposed to intense heat from a distance. These standards provide a reliable benchmark for comparing the thermal resilience of different products, helping you choose a hose that meets certified safety requirements.
The STAMPED Framework for High-Temperature Selection
To eliminate guesswork and prevent costly errors, the fluid power industry relies on the STAMPED method. This acronym provides a systematic checklist to ensure all critical variables are considered when specifying a hose assembly. Applying it is especially important for a High Temperature Resistance Hose.
Size (I.D. and O.D.)
The size of the hose determines its flow capacity and velocity.
Inner Diameter (I.D.): Must be large enough to handle the required flow rate without creating excessive velocity, which can cause turbulence and inner tube erosion.
Outer Diameter (O.D.): Is critical for matching the hose with the correct fittings and clamps. In high-heat areas, you must also account for the O.D. of any protective heat shielding or sleeves.
Temperature
You need to define the thermal conditions precisely.
Maximum Constant Operating Temperature: The continuous temperature of the media and the ambient environment during normal operation.
Intermittent Spikes: Any brief, higher-temperature excursions the hose may experience during cycles like steam cleaning (CIP) or process surges. The hose material must be able to withstand these spikes without degradation.
Application
This covers the physical and environmental conditions of the installation. Consider factors like abrasion from dragging, exposure to UV light or ozone, the required minimum bend radius for routing in tight spaces, and whether the hose will be subjected to torsion or vibration. A hose used in a static application has very different requirements from one used on a moving robotic arm.
Media
Identify the exact substance being conveyed. Chemical compatibility is paramount, but it's essential to remember that heat can act as a catalyst, accelerating corrosive reactions. A material that is compatible with a chemical at room temperature may degrade quickly when heated. Always consult a chemical compatibility chart that specifies resistance at your operating temperature.
Pressure
Beyond the derating factor discussed earlier, you must account for system pressure dynamics.
Maximum Working Pressure: The highest continuous pressure the system will operate at, factoring in temperature derating.
Surge Pressure: Sudden pressure spikes caused by valves closing or pumps starting. The hose's burst pressure rating should be significantly higher (typically 3:1 or 4:1 safety factor) than the maximum working pressure to handle these surges.
Ends (Fittings)
The fittings are as critical as the hose itself. They must be made from a material that can withstand the system temperature without losing strength or sealing capability (e.g., stainless steel over brass). Furthermore, the attachment method is vital. Crimped fittings generally provide a more secure and reliable connection than reusable clamps, especially in high-pressure, high-temperature applications where thermal expansion and contraction can loosen connections over time.
Delivery
This often-overlooked factor relates to logistics and documentation. Specialized high-temperature hoses may have longer lead times. Ensure your supplier can meet your project timeline and provide all necessary compliance documentation, such as material test reports or certificates of conformity, upon delivery.
Material Performance Matrix: Matching Hose to Environment
Choosing the right material is the core of selecting a hose for thermal applications. Each polymer or metal has a distinct performance profile. The table below provides a comparative overview to guide your decision-making process.
| Hose Material |
Typical Max Temp. |
Key Characteristics |
Ideal Applications |
| EPDM & Neoprene |
Up to 150°C (302°F) |
Good heat, weather, and water resistance. Cost-effective. |
Saturated steam, hot water washdown, general industrial transfer. |
| Silicone |
Up to 230°C (446°F) |
Excellent flexibility, ozone/UV resistance, low toxicity. |
Food & beverage, pharmaceutical, engine coolant, hot air ducts. |
| PTFE (Teflon) Lined |
Up to 260°C (500°F) |
Near-universal chemical resistance, low-friction, non-stick. |
Aggressive chemicals, solvents, high-purity applications, hydraulics. |
| Metal (Stainless Steel) |
Over 450°C (842°F) |
Handles extreme pressure and temperature. Less flexible. |
Cryogenics, gas transfer, extreme pressure hydraulics, petrochemicals. |
| Coated Fabric |
Up to 650°C (1200°F) |
Lightweight, highly flexible, designed for air/fume handling. |
High-temperature exhaust, furnace ventilation, fume extraction systems. |
Total Cost of Ownership (TCO) and Implementation Risks
A smart procurement strategy looks beyond the initial purchase price. The true cost of an industrial hose is measured over its entire service life. Focusing solely on the upfront cost can lead to significant long-term expenses and operational risks.
The "Cheap Hose" Trap
Opting for a lower-cost, under-specified hose is a false economy. Consider the hidden costs associated with premature failure:
Lost Production: Every minute of unplanned downtime while a hose is replaced translates to lost revenue.
Labor Costs: The expense of maintenance crews diagnosing the failure, removing the old hose, and installing a new one.
Wasted Media: The value of the product lost during a line breach.
Collateral Damage: A failed hose can damage surrounding equipment, leading to even more extensive repairs.

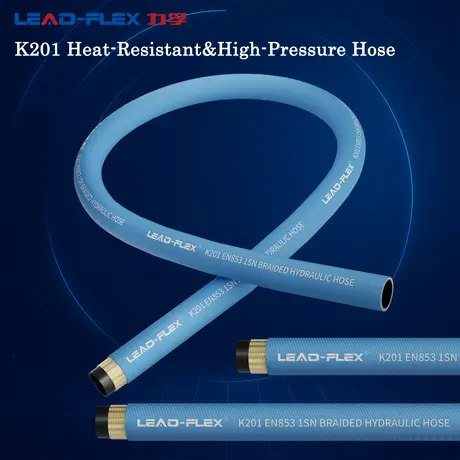

A high-quality High Temperature Resistance Hose, while more expensive initially, provides a better return on investment through superior longevity, reduced maintenance cycles, and enhanced safety.
Preventative Maintenance Realities
Regular inspection is key to preventing catastrophic failures. Train your maintenance teams to look for early warning signs of thermal degradation:
Cover Cracking: The outer cover becoming brittle, showing cracks, or flaking indicates heat damage.
Swelling or Soft Spots: Any change in the hose's texture, especially near the fittings, can signal internal damage.
Loss of Flexibility: A hose that has become stiff and hard has likely been compromised by heat.
Blistering or Bubbles: These can indicate that the inner tube has been permeated, and fluid is trapped between the layers.
Installation Best Practices
Proper installation is crucial, as thermal stress will exacerbate any existing flaws.
Avoid Kinking: Never bend a hose tighter than its specified minimum bend radius. This can cause the reinforcement layer to fatigue and fail.
Prevent Torsion: Do not twist the hose during installation. A twisted hose is under constant stress and will fail much faster, especially when heated.
Provide Slack: Ensure there is enough slack in the line to accommodate pressure changes and thermal expansion/contraction without putting strain on the fittings.
Storage and Handling
The service life of a hose begins before it's even installed. High-performance polymers can be damaged by improper storage. Store hoses in a cool, dark, dry place away from UV light and ozone-generating equipment like electric motors. When storing, coil the hose to a large diameter; never hang it from a single peg or fold it, as this can create permanent weak points.
Decision Logic: Shortlisting Your Supplier
Once you have defined your technical requirements, selecting the right partner is the final step. A reputable supplier does more than just sell parts; they provide technical expertise and assurance.
Verification of Specs
Do not rely solely on marketing data sheets. A trustworthy supplier should be able to provide tangible proof of their product's performance. Request actual test reports or third-party certifications, such as UL-19 Type classification for heat resistance. This step moves your decision from a claim-based choice to an evidence-based one.
Customization Capabilities
Standard, off-the-shelf solutions may not be perfect for every application. Inquire about a supplier's ability to provide customized solutions. Can they offer hoses with integrated heat shields for areas with high radiant heat? Can they supply specialized, corrosion-resistant alloy fittings for your specific media? A supplier with robust customization capabilities can deliver a more integrated and reliable assembly.
Industry Expertise
Evaluate a supplier's track record in your specific industry. A company with deep experience in petrochemicals will understand the unique challenges of that environment better than a generalist. They can offer more relevant advice, recommend proven solutions, and anticipate potential problems. Look for case studies or references that demonstrate their success in applications similar to yours.
Conclusion
Choosing the right high-temperature hose is a methodical process, not a simple commodity purchase. By systematically working through the STAMPED framework, you can ensure no critical detail is missed. Always remember to derate the hose's pressure capacity for your actual operating temperature, as this is the cornerstone of safe specification. While the initial capital expenditure for a high-performance hose may be higher, the long-term benefits of reliability, safety, and reduced total cost of ownership are undeniable. Your next step should be to engage in a technical consultation with a qualified supplier to review your application parameters and verify your selection, ensuring a solution that is both safe and effective for years to come.
FAQ
Q: How much do I need to derate pressure for high temperatures?
A: The derating factor varies significantly by material. For example, some rubber hoses may lose up to 50% of their pressure rating at 100°C, while a PTFE hose might only lose 20%. Always consult the manufacturer's specific pressure-temperature chart for the exact hose you are considering. Never use a generic rule of thumb.
Q: Can I use a high-temp hose for cold media?
A: Not always. While some materials like silicone and PTFE offer a wide operating temperature range, many elastomers that perform well in heat can become brittle and crack at low temperatures. You must verify the hose's full temperature range, from its minimum to its maximum rating, to ensure it is suitable for both hot and cold extremes if your application requires it.
Q: What is the difference between conductive and radiant heat resistance?
A: Conductive heat resistance measures a hose's ability to withstand direct contact with a hot surface. Radiant heat resistance measures its ability to perform when exposed to heat from a nearby source, like a furnace. A hose might have good resistance to one but not the other, so it's important to know which type of heat is dominant in your application.
Q: How often should high-temperature hoses be inspected?
A: The inspection frequency depends on the application's criticality and severity. For critical services, a visual inspection should be part of a daily walk-through. A more thorough, documented inspection should be conducted quarterly or semi-annually. For less critical applications, an annual inspection may suffice. Always follow your site's specific safety protocols and the manufacturer's recommendations.
