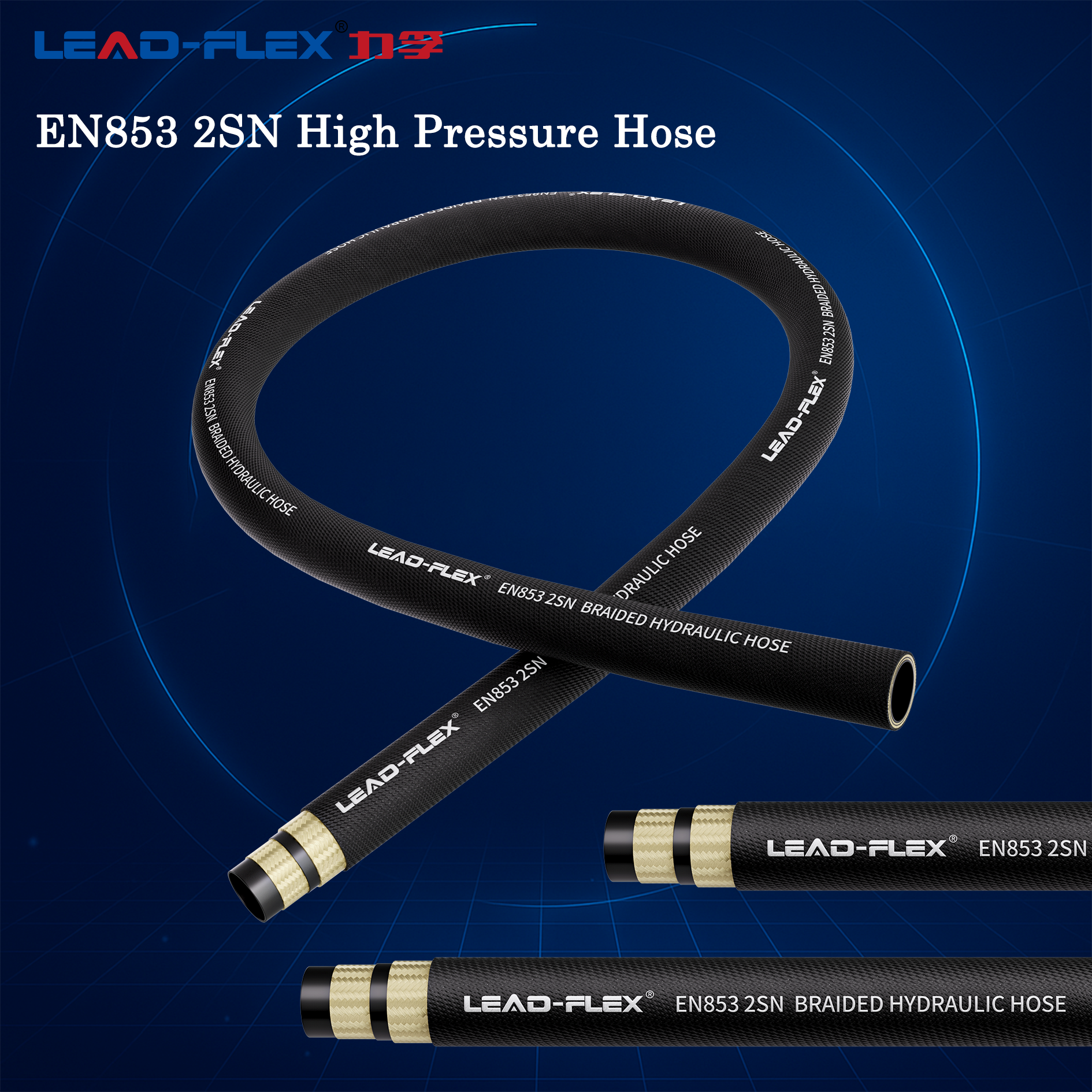

GB/T3683 SAE 100R2AT/EN853-2SN

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Parameters

Construction

This hose consists of an inner tube of oil synthetic rubber,two wire braid reinforcement ,an oil and weather resistant rubber cover.

Applications

Suitable for conveying hydraulic ﬂuids such as glycol, mineral oil, lubrcation, emulsion, hydrocarbons etc. can not be used for conveying phosphate ester groups.

Working Temperattuer

From -40℃ up to +100℃, the conveying medium temperature can be 0℃ to 70℃ if it is water.

Product Series	Nominal Diameter	Size	ID (mm)		W.D (mm)		OD (mm)	W.P	B.P	Min.B.R	W.T
	mm	inch	min	max	min	max	max	Mpa	Mpa	mm	Kg/m
1SN-03-05	5	3/16"	4.6	5.4	9.0	10.0	12.5	25.0	100.0	90.0	0.19
1SN-04-06	6.3	1/4”	6.2	7.0	10.6	11.7	14.1	22.5	90.0	100.0	0.22
1SN-05-08	8	5/16"	7.7	8.5	12.1	13.3	15.7	21.5	85.0	110.0	0.27
1SN-06- 10	10	3/8”	9.5	10.1	14.5	15.7	18.1	18.0	72.0	130.0	0.34
1SN-08- 12.5	12.5	1/2"	12.3	13.5	17.5	19.1	21.4	16.0	64.0	180.0	0.42
1SN- 10- 16	16	5/8”	15.5	16.7	20.6	22.2	24.5	13.0	52.0	200.0	0.51
1SN- 12 - 19	19	3/4"	18.6	19.8	24.6	26.2	28.5	10.5	42.0	240.0	0.66
1SN- 16-25	25	1”	25.0	26.4	32.5	34.1	36.6	8.8	35.0	300.0	0.96
1SN-20-31.5	31.5	1-1/4"	31.4	33	39.3	41.7	44.8	6.3	25.0	420.0	1.17
1SN-24 -38	38	1-1/2”	37.7	39.3	45.6	48.0	52.1	5.0	20.0	500.0	1.50
1SN-32-51	51	2"	50.4	52.0	58.7	61.7	65.5	4.0	16.0	630.0	1.96

GB/T3683 SAE 100R2AT/EN853-2SN
