High-pressure hydraulic systems operate under constant stress, where premature hose failure leads to costly downtime and critical safety hazards. Industrial machinery pushes hydraulic fluid at intense velocities. Engineers constantly face strict demands for better reliability. Operator safety remains a paramount concern across all industrial sectors. Transitioning from standard single-wire to double-wire braided hoses has become a fundamental necessity. Modern, high-impulse equipment requires stronger components. A robust double-layer design handles extreme pressure spikes easily. It prevents the line from ballooning or bursting under sudden loads. This comprehensive guide outlines the technical capabilities of these components. We explore the specific implementation requirements for your machinery. We also provide strict procurement criteria for evaluating the double-layer steel wire braided hose standard. You will learn how to specify these crucial components effectively. We detail how to balance maximum operating pressures against minimum bend radii. You will also uncover best practices for specific fitting compatibilities. This ensures your systems run smoothly without unexpected pressure drops.
Key Takeaways
Performance Upgrade: Double-layer steel wire braiding significantly increases working pressure capacities and impulse resistance compared to single-layer alternatives.
Standardization: Adheres to GB/T3683, SAE J517, and EN 853 standards, ensuring cross-compatibility and predictable performance in global applications.
Application Fit: Ideal for medium-to-high pressure lines in construction equipment, agricultural machinery, and industrial hydraulics requiring oil-resistant synthetic rubber.
Selection Criteria: Proper specification requires balancing maximum operating pressure, minimum bend radius, and fitting compatibility (skive vs. no-skive).

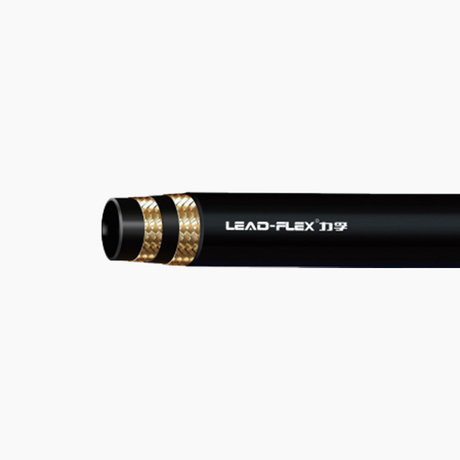

Anatomy and Technical Baseline of the SAE100R2AT / EN853 2SN Steel Wire Braided Hose
Fluid power systems rely entirely on the structural integrity of their fluid conduits. A microscopic flaw in the design compromises the entire machine. We must examine the four foundational elements of the SAE100R2AT / EN853 2SN Steel Wire Braided Hose to understand its capabilities.
Inner Tube Construction: The innermost core utilizes highly specialized oil-resistant synthetic rubber. Manufacturers engineer this layer specifically for broad chemical compatibility. It handles petroleum-based fluids seamlessly. It also manages water-based hydraulic fluids without swelling. Nitrile (NBR) typically serves as the primary base compound here. This precise chemical formulation prevents fluid permeation. It effectively blocks chemical degradation from aggressive modern hydraulic fluids. You rely on this layer to keep the system sealed.
Double-Layer Reinforcement: High-tensile steel wire forms two separate braided layers above the core. Machines weave these layers in a counter-woven pattern. This specific geometric arrangement serves a vital mechanical purpose. It distributes radial stress evenly across the entire hose body. When pressure spikes occur, the wire layers lock together. This action prevents the inner tube from expanding outward. It limits volumetric expansion strictly under peak pressure conditions.
Protective Outer Cover: A tough synthetic rubber layer shields the internal wire braids. This cover provides exceptional resistance to severe abrasion. It also blocks ozone attacks and harsh weather elements. Environmental degradation destroys unprotected lines rapidly in outdoor applications. The specific "AT" designation signifies a precisely engineered thinner cover profile. This thinner profile suits modern, high-speed crimping operations perfectly.
Temperature Limitations: Engineers design these products for specific thermal envelopes. Standard operational ranges usually span from -40°C to +100°C. You must monitor operating conditions closely. Sustained peak temperatures accelerate rubber degradation significantly. Excessive heat hardens the elastomers within the rubber mix. Once hardened, they crack easily under routine bending stress. Micro-cracks eventually expose the steel reinforcement to corrosive moisture.
Mapping Features to System Outcomes: When to Specify Double-Layer Hoses
High-impulse environments destroy poorly specified lines quickly. The robust 2SN construction excels exactly in these harsh conditions. Dynamic machinery generates severe hydraulic shocks during routine operation. Excavators, heavy loaders, and injection molding machines push fluids aggressively. A standard single-braid option frequently fails under these sudden pressure spikes. The inner wire simply cannot contain the kinetic energy. The two-layer structure absorbs this dynamic energy highly efficiently. It physically mitigates the destructive shockwaves traveling through the fluid column. You gain significantly extended service intervals by specifying double-layer designs.
Engineers must map continuous working pressure constraints carefully against equipment capabilities. You must correlate the nominal inside diameter (ID) to safe working pressures. The laws of physics dictate how hoses handle pressure. Pressure ratings decrease naturally as the hose diameter increases. The internal surface area grows larger in wider hoses. This subjects the rubber wall to greater total outward force. For example, a 1/4-inch double-wire line might safely handle 5,800 PSI. Conversely, a 1-inch version drops its safe limit closer to 2,400 PSI. You must account for this diameter-to-pressure drop during system design.
Abrasion and environmental resistance remain critical field factors for reliability. Specialized outer covers protect your hydraulic lines in exceptionally harsh sectors. Mining environments and deep forestry applications expose equipment to brutal physical trauma. Heavy debris impacts the lines constantly. Rubbing against vibrating metal frames causes rapid cover material loss. Once the outer cover fails, exposed steel wire rusts rapidly. The rusted wire eventually snaps under internal pressure loads. Specifying a tougher, specialized outer compound completely prevents these external mechanical failures. It shields your investment against harsh operational realities.
Comparison Framework: SAE 100R2AT vs. Alternatives
We need a clear comparison framework to guide engineering decisions. This section clarifies common design choices using specific decision drivers. It helps you navigate overlapping standards effectively.
Hose Standard | Construction Type | Primary Use Case | Primary Decision Driver |
SAE 100R1AT | Single-Wire Braid | Return lines, tight spaces | Extreme flexibility and low-pressure needs |
SAE 100R2AT | Double-Wire Braid | Main hydraulic power lines | Balanced high-pressure capacity and durability |
EN853 2SN | Double-Wire Braid (EU) | Heavy industrial machinery | Higher impulse cycle ratings and tight tolerances |
Multi-Spiral (4SH) | Four-Wire Spiral | Ultra-high pressure systems | Pressures exceeding standard braided limits |
SAE 100R1AT vs. SAE 100R2AT
The single-wire design offers extreme flexibility for complex machine routing. It fits exceptionally tight spaces and low-pressure return lines perfectly. However, main hydraulic power lines require substantially higher structural thresholds. The double-wire option provides the necessary mechanical safety factor. It prevents catastrophic ruptures when system demands peak unexpectedly. You choose R2AT when reliable power transmission matters most.
SAE 100R2AT vs. EN853 2SN
Global suppliers often treat these two standards interchangeably in their catalogs. You should understand the subtle technical nuances. The European EN853 2SN standard typically offers slightly higher impulse cycle ratings. It demands stricter testing protocols during manufacturing. It also features marginally different dimensional tolerances for the outer diameter. EN specifications generally push for tighter performance metrics across the board. You select 2SN when European equipment compatibility remains strictly required.
SAE 100R2AT vs. Multi-Spiral Hoses (e.g., 4SH / SAE 100R12)
You transition to multi-spiral designs only when operating pressures heavily exceed braided limits. Heavy-duty excavators often require these spiral designs. Spiral layers run parallel and do not cross over one another. This geometric change eliminates friction points between individual wires. However, spiral hoses trade significant flexibility for absolute strength. They increase physical rigidity, assembly weight, and component complexity significantly. You specify spiral wire only when the pressure demands it.
Installation Realities and Implementation Risks
Improper installation practices cause more field failures than actual manufacturing defects. You must respect the physical limitations of the steel wire. We strongly advise following established industry guidelines for every assembly.
Minimum Bend Radius Compliance
Minimum bend radius compliance prevents immediate structural damage. Every specification sheet lists a minimum bend radius. Forcing fluid lines beyond this minimum bend radius creates severe routing risks. The mechanics of extreme bending are highly destructive. The outer wire braid stretches forcefully while the inner braid compresses. This unnatural distortion leads directly to rapid wire fatigue. The steel strands weaken and break internally. The hose will eventually suffer a catastrophic blowout on the outer curve. Always use angled fittings to relieve extreme bending stress.
Fitting Compatibility and Skiving
Fitting compatibility and proper skiving determine joint integrity. The specific "AT" designation signifies a thin synthetic cover. This exact profile permits no-skive fittings in many modern applications. No-skive assembly saves considerable time on the production floor. The crimping die pushes the fitting teeth directly through the thin rubber. They bite firmly into the wire mesh. However, traditional "A" designated lines require external skiving. You must physically remove the outer rubber layer for secure crimping. Skipping the skiving process on an "A" hose guarantees a dangerous fitting blowout. Always verify your fitting compatibility chart before applying machine pressure.
Twisting and Torsional Stress
Twisting and torsional stress destroy internal structural integrity rapidly. Installation best practices mandate perfectly straight, relaxed alignments. Twisting the line during assembly reduces its mechanical lifespan by up to 70%. The tightly braided wires separate under severe rotational stress. They lose their ability to contain outward pressure evenly. We recommend using the printed layline as a precise visual guide. The text running along the cover must remain perfectly straight. If the printed line twists around the circumference, the assembly is severely compromised. Loosen the connections, relax the twist, and retighten carefully.
Procurement & Quality Assurance: Evaluating Supplier Trustworthiness
Finding a reliable manufacturing partner ensures long-term system safety. Industrial buyers must demand rigorous quality validation from their suppliers. Visual inspections alone cannot guarantee high-pressure performance.
Impulse testing documentation proves real-world physical capability. You must request definitive proof of standardized impulse testing. High-quality units endure 200,000 or more cycles at specified elevated temperatures and peak pressures. This extreme testing regimen accurately mimics years of severe mechanical abuse. The rubber and wire must survive without degrading. Do not accept products lacking certified, batch-specific test data.
Dimensional accuracy guarantees secure, leak-free crimping operations. Manufacturers must adhere strictly to GB/T3683 and SAE J517 dimensional tolerances. Variations in the outer diameter cause unpredictable fitting blow-offs. Your shop's crimp settings rely entirely on precise measurements. A single millimeter of deviation ruins the entire mechanical connection. Premium suppliers use laser-measuring tools during extrusion to guarantee exact diameters.
Material traceability permanently separates premium suppliers from unverified budget alternatives. Evaluate manufacturers heavily on their internal batch tracking protocols. They must trace synthetic rubber compounds back to their chemical origins. They must also track steel wire tensile strength accurately per batch. This documentation ensures consistent field performance across every single order. Variations in steel wire tension weaken the final braided product. Strict traceability ensures you receive exact replicas of certified test samples.
Conclusion
The fluid power industry relies heavily on standardized, proven components. The SAE100R2AT / EN853 2SN Steel Wire Braided Hose remains a foundational element in modern systems. It consistently provides the optimal balance of routing flexibility, extreme pressure capacity, and environmental durability. Heavy-duty construction equipment and industrial hydraulic setups rely on this exact combination. Standardizing on this specification improves inventory management and equipment safety simultaneously.
Take immediate action to secure your hydraulic infrastructure. We recommend the following concrete steps:
Audit your current system pressure requirements comprehensively. Map your peak dynamic impulse spikes against the nominal ratings of your currently installed lines.
Verify your current fitting compatibility strictly. Check if your existing crimping machines and fittings fully support no-skive AT designs.
Inspect existing equipment lines for damaging torsional stress. Look closely for twisted laylines. Correct them immediately to extend component service life.
Consult directly with technical fluid power specialists. Review your findings with a hydraulic engineering expert to modernize your corporate procurement standards.
FAQ
Q: What is the difference between SAE 100R2A and SAE 100R2AT?
A: The "AT" designation denotes a thinner outer cover. Manufacturers design this thinner profile to accommodate no-skive fittings in many applications. This allows you to crimp the fitting directly over the cover. The older "A" designation features a thicker cover. You must remove (skive) this rubber layer before crimping to ensure a secure metal-to-metal connection.
Q: What types of fluids are compatible with a standard SAE100R2AT hose?
A: The inner synthetic rubber tube handles a wide variety of standard fluids safely. These include mineral oils, vegetable oils, polyglycol-based oils, and water-oil emulsions. The standard nitrile core offers excellent resistance to petroleum derivatives. However, you must verify chemical compatibility carefully if your system uses highly specialized synthetic fluids or aggressive aerospace hydraulics.
Q: How does temperature affect the working pressure of steel wire braided hoses?
A: Temperature dramatically impacts structural integrity through a derating factor. Sustained operation at or above maximum rated temperatures accelerates rubber aging. Heat hardens the elastomers and reduces flexibility. As the rubber degrades, the hose loses its ability to handle peak pressures safely. Extreme heat ultimately shortens the assembly's overall lifespan and increases failure risks.
