Hydraulic systems are integral to modern industrial, automotive, and construction machinery. These systems rely on pressurized fluids to transfer energy efficiently, enabling heavy lifting, precise movement, and smooth operation. While components such as pumps, cylinders, and valves are critical, one often overlooked yet essential component is the hydraulic hose. Among these, steel wire braided hoses have emerged as a leading solution, offering unmatched safety, reliability, and performance in demanding environments.
1. Understanding Steel Wire Braided Hoses

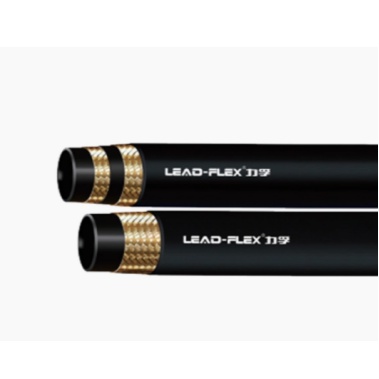

Steel wire braided hoses are composed of three main layers: an inner tube, one or more layers of braided steel wire reinforcement, and an outer protective cover. Each component contributes to the hose's overall performance:
Inner Tube: Typically made of synthetic rubber or thermoplastic, the inner tube must withstand hydraulic fluids, temperature fluctuations, and internal pressure without degradation.
Steel Wire Braiding: High-tensile steel wire provides structural reinforcement, allowing the hose to handle high pressures and resist elongation or bursting. Multiple layers of braiding can increase pressure capacity and durability.
Outer Cover: The outer layer protects against abrasion, UV exposure, oil, chemicals, and environmental hazards. Modern hoses often feature specialized coatings for enhanced lifespan.
This construction allows steel wire braided hoses to operate in conditions that would damage conventional rubber hoses, making them ideal for high-pressure hydraulic applications.
2. Advantages of Steel Wire Braided Hoses in Hydraulic Systems
Steel wire braided hoses have become a cornerstone in hydraulic systems due to their unmatched combination of strength, flexibility, and reliability. Hydraulic systems operate under extreme pressures and often in demanding environments where failures can result in costly downtime, equipment damage, or even safety hazards. Choosing the right hydraulic hose is therefore critical, and steel wire braided hoses stand out as a superior solution.
Enhanced Safety
Safety is the foremost advantage of steel wire braided hoses. Hydraulic systems, especially in industrial or construction settings, operate at very high pressures, sometimes exceeding 3,000 psi. Under such conditions, a hose failure can have severe consequences. Steel wire braided hoses are engineered specifically to minimize these risks:
Burst Resistance: The steel wire reinforcement layer is the primary safety feature of these hoses. By providing structural support, it ensures that the hose maintains its integrity even under extreme pressure or sudden surges. Unlike ordinary rubber hoses, which may bulge or burst when exposed to rapid pressure changes, the braided steel layer distributes stress evenly, preventing catastrophic failure.
Temperature Tolerance: Hydraulic systems can generate heat due to fluid friction and high-pressure operation. Additionally, many hoses are exposed to fluctuating outdoor temperatures or hot engine compartments. Steel wire braided hoses are designed to maintain their structural integrity in both high and low temperatures, reducing the risk of leaks, ruptures, or performance degradation. This makes them suitable for heavy-duty applications ranging from industrial presses to mobile construction equipment.
Chemical Resistance: Hydraulic fluids often contain additives, and industrial environments may expose hoses to oils, solvents, or cleaning chemicals. A hose’s inner tube and outer cover must resist chemical degradation to maintain reliability. Steel wire braided hoses feature chemically resistant layers that prevent breakdown from fluid contact, ensuring long-term operational safety and preventing hazardous leaks.
In addition to protecting the equipment, steel wire braided hoses safeguard operators. The reliability and robustness of these hoses reduce the likelihood of sudden fluid ejections, which can cause serious injuries in high-pressure hydraulic systems.
Superior Performance
Beyond safety, performance is another area where steel wire braided hoses excel. Hydraulic systems depend on consistent fluid pressure and flow. Any loss of pressure, leaks, or deformation in hoses can compromise system efficiency and operational precision:
Maintaining Pressure: One of the key benefits of steel wire reinforcement is resistance to elongation under pressure. As a result, these hoses maintain stable internal diameters and consistent flow rates, even under continuous high-pressure operation. This ensures hydraulic components like cylinders and motors operate smoothly without pressure drops or irregular movement.
Flexibility: Despite their reinforced structure, steel wire braided hoses are surprisingly flexible. This flexibility allows hoses to be routed through complex machinery layouts without kinking or bending sharply. Proper flexibility reduces mechanical stress on fittings and connections, further enhancing operational reliability.
Durability: The combination of steel braiding and robust outer covers prolongs hose lifespan. The outer cover protects against abrasion, UV exposure, and environmental hazards, while the inner steel reinforcement prevents rupture and maintains pressure integrity. For industrial operators, this durability translates into fewer replacements, reduced maintenance costs, and higher overall system uptime.
Versatility Across Applications
Steel wire braided hoses are not limited to a single industry or application. Their strength, flexibility, and chemical resistance make them suitable for a wide range of hydraulic systems:
Industrial Machinery: Many manufacturing processes rely on hydraulic presses, injection molding machines, automated assembly lines, and robotic systems. Steel wire braided hoses provide the reliability needed to maintain continuous operation in these high-pressure environments.
Construction Equipment: Excavators, loaders, cranes, concrete pumps, and other heavy-duty machinery depend on hydraulic hoses to transfer energy efficiently. Steel wire braided hoses withstand the harsh outdoor conditions, vibration, and mechanical stresses inherent in construction sites.
Automotive Systems: In vehicles, high-performance brakes, power steering, and transmission systems utilize hydraulic circuits that require reliable, pressure-resistant hoses. Reinforced hoses prevent fluid leaks and maintain performance in both passenger and commercial vehicles.
Agricultural Machinery: Tractors, harvesters, irrigation pumps, and other farm equipment operate in dusty, muddy, and sometimes wet environments. Steel wire braided hoses ensure consistent hydraulic performance despite exposure to soil, chemicals, and fluctuating temperatures.
3. Key Specifications to Consider
Selecting the correct steel wire braided hose requires careful attention to technical specifications to ensure safety, efficiency, and longevity:
Pressure Rating: Always verify that the hose’s maximum working pressure exceeds the system’s operating pressure, including any potential spikes. Choosing a hose with an adequate safety margin is crucial for avoiding premature failure.
Temperature Range: Ensure the hose can handle both the minimum and maximum operating temperatures of the application. Extreme temperatures can affect hose flexibility, pressure tolerance, and chemical resistance.
Fluid Compatibility: The inner tube must be compatible with the hydraulic fluid used, whether mineral oil-based, synthetic, or biodegradable. Incorrect compatibility can cause swelling, softening, or chemical breakdown.
Bend Radius: Consider the installation environment and routing requirements. Maintaining the minimum bend radius prevents kinking, which can obstruct flow and damage the reinforcement layers.
End Fittings: Proper fittings are critical for leak-free operation and reliable system performance. Hoses must be equipped with compatible fittings designed to withstand system pressure, vibration, and environmental exposure.
By considering these specifications carefully, engineers and operators can maximize hose performance and safety, ensuring reliable and efficient hydraulic system operation.
4. Installation Best Practices
Even the most durable hose can fail if improperly installed. Best practices include:
Avoid Twisting: Ensure the hose is not twisted during installation, as this can reduce pressure capacity and cause premature wear.
Use Proper Bend Radius: Respect the hose’s minimum bend radius to prevent stress on the reinforcement layers.
Secure with Clamps or Guides: Proper support prevents vibration and chafing, extending hose life.
Check Fittings: Use the correct fittings, torque settings, and sealing methods to prevent leaks.
Regular Inspections: Periodically check hoses for abrasion, kinks, leaks, or bulges to detect issues before failure occurs.
5. Maintenance and Longevity
Steel wire braided hoses are robust, but regular maintenance ensures maximum lifespan:
Cleanliness: Keep hoses free of dirt, debris, and chemical residues.
Visual Inspection: Look for outer cover damage, fraying braids, or corrosion.
Pressure Testing: Periodic testing confirms continued integrity under operating pressure.
Replace When Needed: Hoses showing signs of wear should be replaced promptly to prevent failure.
6. Innovations in Hose Technology
Modern steel wire braided hoses incorporate advanced materials and engineering:
Synthetic Reinforcements: Some hoses use hybrid reinforcement layers combining steel and synthetic fibers for weight reduction and enhanced flexibility.
Low-Friction Liners: Advanced inner tubes reduce energy loss due to fluid friction, enhancing system efficiency.
7. Cost-Benefit Analysis
Though steel wire braided hoses may have higher upfront costs compared to standard rubber hoses, their longevity, safety, and reliability justify the investment:
Reduced Downtime: Fewer hose failures translate into higher productivity and lower repair costs.
Lower Maintenance Expenses: Durable construction reduces frequency of replacement and maintenance labor.
Enhanced Safety: Preventing leaks and bursts minimizes risk of injury and equipment damage, offering intangible but significant value.
Conclusion
Steel wire braided hoses are indispensable in modern hydraulic systems. They combine high-pressure performance, flexibility, chemical resistance, and long-term durability, ensuring safe and efficient operation across industries—from industrial machinery to construction, automotive, and agriculture. Investing in high-quality steel wire braided hoses reduces downtime, improves system reliability, and enhances overall productivity.
For businesses seeking premium, reliable solutions, Qingdao Rubber Six Hose Co., Ltd. offers a wide range of steel wire braided hoses designed for demanding hydraulic applications. Their expertise ensures that every hose meets rigorous safety and performance standards, helping companies optimize their systems while maintaining operational efficiency. To learn more about their products or discuss custom solutions, visit their website or contact the company directly.
