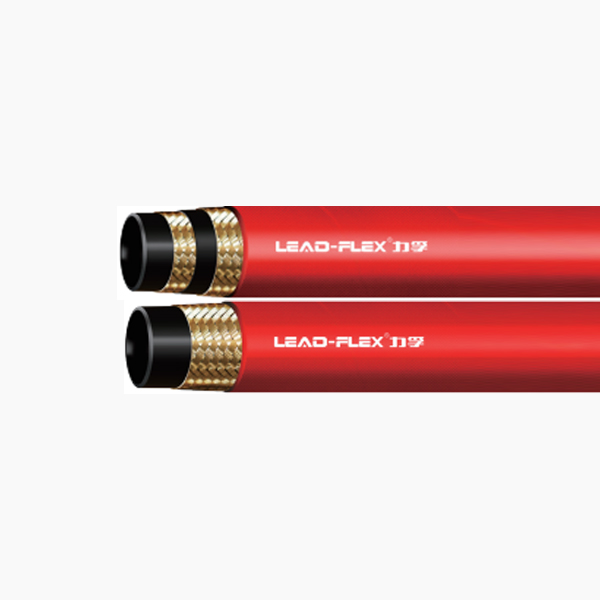

How to Drain, Dry, and Store a Steam Hose After Use

Industrial steam applications operate under extreme thermal and pressure stress. Heat and moisture create a punishing environment for industrial rubber products. Proper post-use handling is critical, not optional. When operators finish a shift, leaving residual condensate inside the tube leads to a highly dangerous phenomenon. We call this "popcorning." Trapped moisture rapidly expands into steam during the next use. This aggressive expansion causes immediate tube hardening and can trigger catastrophic blowouts on the factory floor. Operations face unplanned downtime and severe injury risks if equipment fails.

Our objective is to define a standardized, safety-first operating procedure. We will guide you through draining, drying, and staging hoses correctly. You will learn how to protect personnel, maximize equipment ROI, and maintain facility compliance. Following these strict protocols ensures your systems remain safe and effective for every operational cycle.

Key Takeaways

• Depressurize and Cool First: Never manipulate a pressurized line; allow ambient cooling to prevent thermal shock and severe burns.

• Gravity is the Baseline: Elevate one end to ensure complete condensate drainage before active drying.

• Forced Air Drying is Non-Negotiable: Residual moisture is the primary cause of internal tube blistering. Use oil-free compressed air for complete drying.

• Optimize Steam Hose Storage Environment: Store in a cool, dry, dark environment away from ozone sources (e.g., electric motors) to prevent elastomeric degradation.

• Respect the Bend Radius: Coiling tighter than the manufacturer's specified minimum bend radius compromises the wire helix and synthetic reinforcements.

The Hidden Costs of Poor Steam Hose Maintenance (Problem Framing)

Neglecting proper post-use procedures creates profound physical damage inside your equipment. The most notorious issue is the "popcorning" effect. Water vapor permeates the microscopic pores of the inner rubber tube during use. When you shut the system down, this vapor condenses into liquid water. If you fail to remove this moisture, it remains trapped inside the rubber matrix. During the next shift, extreme heat hits the trapped water. The water flashes back into steam instantly. It expands up to 1,600 times its original liquid volume. This sudden, violent expansion ruptures the synthetic materials from the inside out. You will see internal blisters forming along the inner wall. Operators call this popcorning. It destroys structural integrity completely.

Moisture creates another silent threat. Accelerated oxidation attacks the structural core. Most high-pressure industrial lines rely on braided steel wire reinforcements. Residual moisture combines with oxygen to accelerate internal rusting. A corroded wire braid loses its tensile strength rapidly. The rubber cover might look flawless, but the metallic skeleton underneath rots away.

These physical failures translate directly into severe operational risks. You face unscheduled downtime when a line ruptures unexpectedly. Regulatory bodies issue heavy fines for workplace safety violations. More importantly, compromised integrity creates life-threatening blowout risks for your personnel. High-pressure thermal releases cause catastrophic injuries in seconds.

We need clear success criteria for a standardized operating procedure. A robust protocol should extend overall lifespan by 30% to 50%. It must achieve zero safety incidents during fluid transfer. Finally, it should help you maintain audit-ready equipment logs for compliance inspectors.

Table 1: Poor Maintenance vs. Proper Maintenance Outcomes

Step 1: Safely Draining Your Steam Hot Water Hose

Handling thermal fluid lines requires absolute precision. Safety always comes first. You must treat every line as a live hazard. steam hose safety begins with mandatory personal protective equipment (PPE). Operators must wear heavy-duty thermal gloves rated for high temperatures. Polycarbonate face shields and heavy aprons prevent splash injuries. Always implement strict lockout/tagout (LOTO) procedures for all supply valves before beginning the drainage process.

Controlled depressurization is your next critical move. Never force a connection open. You must slowly vent residual pressure from the system. Wait for the external cover temperature to drop. It must reach a manageable handling threshold before any physical manipulation occurs. Rushing this step causes severe thermal shock to both the equipment and the operator.

Once you achieve a safe handling temperature, employ the elevation method. This is the most reliable way to clear a steam hot water hose. Follow these exact steps:

1. Verify the downstream discharge valve remains fully open.

2. Carefully disconnect the primary supply end first.

3. Walk the entire length out completely flat on the facility floor.

4. Lift the supply end over your shoulder.

5. Walk slowly toward the discharge end, maintaining elevation.

6. Allow gravity to force all bulk condensate out through the open discharge fitting.

Beware of one major implementation risk. Failing to open the downstream valve before disconnecting the supply creates a vacuum seal. This traps pressurized condensate inside. When you finally break the downstream seal, it results in a hazardous, uncontrolled release of boiling water.

Step 2: Drying Protocols to Prevent Tube Degradation

Many facilities make a critical error here. They rely solely on ambient evaporation. Why does ambient air drying fail? It leaves dangerous micro-pockets of moisture deep inside the tube's porous surface. Gravity removes the bulk water, but it cannot extract condensation clinging to the inner walls. If you stop at gravity drainage, you invite the popcorning effect we discussed earlier.

Forced air flushing provides the only reliable solution. Connect oil-free compressed air to the supply fitting. Blow high-velocity air through the entire assembly to push out remaining droplets. We base this on a critical assumption: your facility must use an oil-free compressor. Standard shop air often contains aerosolized lubricating oils. Oil contamination aggressively degrades EPDM rubber. It turns strong elastomers into a gummy, weakened mess.

You need visual and tactile verification to confirm success. Place a clean, dry paper towel over the discharge end while flushing. Check the towel for any damp spots. Keep flushing until the discharged air feels completely dry against a gloved hand. Ensure zero moisture remains.

Finally, focus on handling the fittings. Water pools around end connections, couplings, and O-rings. Wipe these components down meticulously with a clean rag. Preventing localized rust on the fittings ensures a secure, leak-proof seal for your next application. Neglected couplings seize up and fail long before the rubber degrades.

Step 3: Best Practices for Steam Hose Storage

Staging your equipment properly requires strict environmental controls. You cannot throw industrial components into a dark corner and expect them to survive. We recommend storing them in a climate-controlled area. The ideal temperature range sits between 50°F and 70°F. Keep all rubber materials away from direct sunlight and harsh UV rays. Sunlight accelerates cover cracking rapidly.

You must also isolate your inventory from ozone-producing equipment. Electric welders, large industrial motors, and high-voltage transformers generate ambient ozone. Ozone chemically attacks the double bonds in rubber polymers. It causes deep, structural fissures along the cover. Effective steam hose storage demands separation from these atmospheric hazards.

Proper coiling and racking will preserve the wire helix. Adhere strictly to the manufacturer's Minimum Bend Radius. Forcing a tight coil destroys the internal reinforcements immediately.

• Store assemblies on a designated, curved hose reel.

• Use broad saddle racks to distribute weight evenly.

• Lay them flat on a clean pallet if wall racks are unavailable.

• Never hang them over a single nail or a thin hook. Point-loading causes permanent kinking.

Always cap the ends before walking away. Use protective plastic dust caps over the metal fittings. Caps prevent the ingress of rodents, insects, and abrasive particulate matter during long-term staging. A clean interior prevents unexpected blockages during startup.

Finally, avoid cross-contamination at all costs. Never store these assemblies in the same containment area as petroleum products, industrial solvents, or corrosive chemical agents. Fumes alone can degrade synthetic rubber over time.

Inspection & Evaluation: Is Your Hose Ready for the Next Shift?

The staging phase offers the ideal time for routine checks. A pre-deployment audit catches minor flaws before they become major emergencies. Consistent steam hose maintenance relies on these quiet moments between shifts. Operators must look closely at the physical state of the equipment.

Use strict visual evaluation lenses. Inspect the outer cover for raised blisters or soft spots. Look for deep cuts exposing the braided wire underneath. Check for localized hardening or brittleness. Rubber should remain pliable. If it feels like hard plastic, thermal degradation has already ruined the elasticity.

Coupling integrity demands equal attention. Check the fittings for any signs of coupling slippage. Inspect the threads for wear, cross-threading, or metal fatigue. Look at the interlocking clamps to ensure they sit flush and tight. A slipping coupling becomes a deadly projectile under pressure.

You need clear replacement versus repair logic. An industrial steam hose cannot be safely spliced or repaired. You cannot patch it. You cannot cut out a bad section and reconnect it. If your evaluation criteria flag any structural compromise, mandate an immediate replacement. Risking a patched line violates basic safety protocols.

Table 2: Pre-Deployment Inspection Checklist

Your next-step action involves strategic procurement. Consult with a certified distributor if your current inventory fails too frequently. You may need to evaluate high-grade EPDM or advanced Chlorobutyl options. Upgrading your base materials often solves recurring failure issues.

Conclusion

Draining, drying, and proper staging are not merely optional housekeeping tasks. They serve as critical risk-mitigation strategies for your entire facility. Failing to clear condensate directly leads to destructive popcorning and dangerous blowouts. When operators follow structured drying and coiling methods, equipment survives longer and performs better.

We strongly recommend formalizing these exact steps into your facility's daily standard operating procedures. Writing them down ensures consistency across different shifts and different operators. You protect your workers from severe thermal injuries. You also reduce constant procurement cycles by maximizing the lifespan of your current assets.

Take action today. Prompt your maintenance team to audit their current inventory immediately. Download a standardized maintenance checklist and mount it near your supply lines. Contact your engineering team to source durable, NAHAD-compliant materials and install appropriate saddle storage racks. Proactive management guarantees a safer, more efficient industrial environment.

FAQ

Q: Can I coil a steam hose immediately after use?

A: No. Coiling a hot hose traps heat and moisture, accelerating tube degradation. Allow it to drain and cool completely first.

Q: What is the minimum bend radius for steam hose storage?

A: It varies by manufacturer and inner diameter (I.D.), but rule of thumb dictates a radius of at least 10 times the hose I.D. Always check the spec sheet.

Q: How long can a steam hose sit in storage before it degrades?

A: Under optimal conditions (cool, dark, dry, no ozone), a new, unused industrial rubber hose can typically be stored for 3 to 5 years (shelf life). For actively used hoses, storage lifespan depends heavily on usage frequency and maintenance adherence.

Q: Why is my steam hose cover blistering even though I drain it?

A: Blistering can occur if residual moisture isn't completely dried via forced air, or if the hose is being used for superheated steam beyond its temperature rating.
