Misidentifying the type of vapor in your facility does not just cause premature equipment wear. It creates severe and immediate safety hazards for your workforce. Specifying a component for transfer requires exact knowledge of the system's thermal state. Standard industrial rubber lines will catastrophically fail if exposed to the dry, intense heat of superheated systems. Conversely, over-engineering a solution for basic moisture-heavy applications wastes your valuable procurement budget.
You must understand exactly what flows through your infrastructure. This guide breaks down the critical differences between saturated and superheated thermal states. We provide a strict, evidence-based decision framework for specifying the correct steam hose to ensure compliance, operational efficiency, and workplace protection. You will learn how material science dictates selection and why guessing is never an acceptable option in industrial engineering.
Key Takeaways
State Defines Material: Saturated steam requires moisture-resistant elastomers (like EPDM), while superheated steam demands dry-heat-resistant materials (like PTFE or corrugated stainless steel).
Temperature vs. Pressure: Superheated steam breaks the standard pressure-temperature correlation, making temperature the primary metric for hose specification.
Safety First: Using a standard saturated steam hose for superheated applications leads to rapid elastomer hardening, cracking, and eventual explosive failure.
Inspection is Mandatory: Implementing strict maintenance intervals is non-negotiable for steam hose safety, regardless of the hose material chosen.
The Core Difference: Saturated vs. Superheated Steam in Industrial Environments
We must define these two distinct states clearly. Saturated vapor holds significant moisture. It exists at the exact boiling point for its specific pressure level. We see it everywhere in manufacturing environments. It dominates heating, sterilization, and cleaning processes. The gas and liquid water exist in perfect thermodynamic equilibrium here.
Superheated vapor behaves entirely differently. We create it by heating saturated gas beyond its normal boiling point. It contains absolutely zero moisture. It behaves exactly like a dry gas. It reaches dramatically higher temperatures quickly. Crucially, system pressure does not increase alongside this extreme temperature spike.
These physical differences carry massive engineering implications. The thermal state strictly dictates your procurement choice. Wet systems require an inner tube capable of handling both heat and constant moisture. Dry systems demand something entirely different. They require assemblies capable of withstanding extreme thermal degradation.
The popcorning effect destroys standard rubber rapidly. It represents the primary failure mode in wet environments. Vapor penetrates the microscopic pores of the inner rubber tube. It cools down and condenses into liquid water pockets. During the next operational cycle, this trapped water expands back into gas. Water expands roughly 1,600 times its liquid volume when vaporizing. This massive expansion tears the elastomer apart from the inside out.
Dry baking presents an equally dangerous threat for superheated applications. This high-energy gas lacks moisture entirely. Standard rubber compounds require some ambient moisture to maintain their flexibility. The dry heat aggressively attacks the chemical cross-linking of the elastomer. The rubber hardens, becomes brittle, and loses all elasticity. Cracking spreads through the tube wall quickly. An explosive rupture soon follows.
We must evaluate the real-world risk assessment here. Misidentification leads to catastrophic outcomes across your facility.
Unplanned Downtime: Sudden equipment failures halt production lines indefinitely.
Optimal material composites define system longevity. EPDM (Ethylene Propylene Diene Monomer) and chlorobutyl dominate wet vapor handling. They resist moisture intrusion exceptionally well. Manufacturers typically rate them up to 450°F (232°C) and 250 PSI. You rely on these specific elastomers to resist the internal condensation cycle. They often feature pin-pricked outer covers. These tiny holes allow trapped gases to escape safely without blistering the cover.
Reinforcement layers provide necessary structural strength. High-tensile steel wire braids are absolute requirements here. They prevent the inner tube from ballooning outward. They maintain structural integrity under fluctuating pressure spikes. You should never accept textile reinforcements for these high-energy lines.

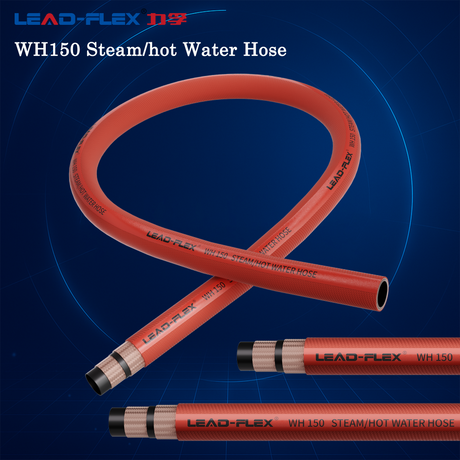

Sometimes facilities need flexible washing capabilities alongside high temperatures. You might specify a steam hot water hose for these dual-purpose utilities. Food and beverage plants use them constantly for intense washdown protocols. Sanitation teams rely heavily on this dual capability. However, dedicated continuous-flow lines serve different, more demanding purposes entirely.
Standard compliance ensures baseline reliability. Always verify product ratings against recognized global standards. ISO 6134 is the primary international benchmark. Meeting these exact testing parameters guarantees a minimum safety threshold for your operations.
Superheated Steam Hose Selection Criteria
Superheated systems demand entirely specialized materials. Traditional elastomers fail catastrophically here. The extreme dry heat simply destroys standard rubber compounds. You must disqualify standard EPDM options immediately to protect your workforce.
Selecting a proper high temperature steam hose requires exploring rigid alternatives. We have two primary industry solutions for these environments.
First, consider PTFE-lined assemblies. They offer excellent chemical and dry-heat resistance. They handle the complete lack of moisture perfectly. However, they do have strict bending radius limitations. You cannot route them around tight corners safely.
Second, consider corrugated stainless steel metal assemblies. These represent the ultimate industry standard for extreme temperatures. They often carry ratings well above 800°F (426°C). Stainless steel provides absolute resistance to dry baking. It never suffers from vulcanization breakdown. Annular corrugations offer optimal flexibility for these rigid lines.
Insulation and jacketing play critical roles here. Heat loss prevention improves overall energy efficiency. More importantly, it provides critical burn-protection for personnel. Superheated lines radiate dangerous amounts of thermal energy. Thick fiberglass sleeving or silicone outer jackets protect workers from accidental contact.
The Decision Framework: Specifying the Right Hose for Your Facility
We highly recommend using the STAMPED method for your facility. This standard framework works perfectly for high-energy fluid transfer.
Size (S) and Pressure (P) require careful mapping. Match your flow rate requirements against the published maximum working pressure. Always design your system around relief valve pop-off settings. Never base your decision strictly on normal operating pressures.
Temperature (T) remains your primary deciding factor. You must establish whether temperature peaks are continuous or intermittent. Superheated continuous peaks demand metal or PTFE cores.
Application (A) influences your structural choices. Consider the physical movement of the line. Stationary piping connections allow for stiffer metal options. Manual washdown setups or mobile boiler connections require flexible elastomer construction.
Coupling compatibility defines your ultimate safety margin. An assembly remains only as strong as its end fittings. You must avoid standard worm-gear band clamps completely. They loosen rapidly under thermal expansion. We mandate interlocking, boss-style ground-joint couplings for all elevated applications.
Here is a shortlisting logic summary to hand directly to your procurement team:
Verify the exact physical state of your system vapor.
Identify the absolute maximum temperature and pressure spikes.
Select an inner tube material explicitly rated for those extremes.
Specify interlocking safety couplings for all final assemblies.
Review this comparison to clarify your material selection strategy.
Specification Criteria
Saturated Systems
Superheated Systems
Moisture Content
High (Liquid droplets present)
Zero (Behaves as dry gas)
Primary Failure Mode
Popcorning effect from trapped water
Dry baking and embrittlement
Recommended Core Material
EPDM or Chlorobutyl Rubber
PTFE or Corrugated Stainless Steel
Temperature Dependence
Tied directly to system pressure
Independent of system pressure
Implementation Risks and Steam Hose Safety Protocols
Installation best practices extend assembly lifespan dramatically. Proper routing prevents premature mechanical failure. Avoid excessive bending near the fitting ends. Eliminate all torsion and twisting forces during installation. Do not route these high-energy lines near abrasive surfaces. Continuous physical rubbing degrades the protective outer cover rapidly.
Visual and hydrostatic inspection routines keep your team alive. You must know exactly what to look for during daily walk-throughs. Check the outer cover for unusual blisters or bubbles. Look closely for exposed steel reinforcement wire. Feel the rubber for localized hardening near the fittings. These symptoms indicate impending internal failure. Implement regular hydrostatic testing protocols at 1.5 times the normal working pressure.
Retirement criteria must be strict and unforgiving. Establish a proactive replacement schedule immediately. Base this timeline strictly on total hours of operation. Do not wait for visible signs of structural failure. Internal thermal degradation happens silently and unpredictably.
Conclusion
Selecting an industrial line for vapor transfer is never a place for guesswork. Cost-cutting on safety components leads directly to catastrophic accidents. The physical properties of saturated versus superheated moisture fundamentally change how materials react. Thermal stress attacks EPDM very differently than it attacks PTFE.
We urge you to audit your current utility lines today. Verify your boiler outputs with precision instruments. Consult with a certified assembly fabricator. Ensure your current equipment meets the exact operational specifications of your facility. Protect your workforce by upgrading questionable connections immediately.
FAQ
Q: Can I use a saturated steam hose for superheated steam if the pressure is low?
A: No. Even at low pressures, the dry, extreme heat of superheated steam will rapidly bake and crack the rubber compounds found in saturated steam hoses, leading to sudden failure.
Q: How often should a steam hose be replaced?
A: It depends on usage frequency, temperature, and environment, but industry best practices recommend testing every 6 months and replacing assemblies proactively every 1 to 2 years, regardless of outward appearance.
Q: What is the best coupling type for a high temperature steam hose?
A: Boss-style interlocking ground-joint couplings or heavily crimped permanent steam fittings. Standard worm-gear clamps or low-pressure bands should never be used on steam hoses.
Q: Why is my steam hose "weeping" at the connections?
A: Weeping often indicates that the steam has compromised the inner tube, migrating through the reinforcement layer to the fitting. This is a critical warning sign that the hose must be removed from service immediately to maintain steam hose safety.
