Industrial steam handling represents a severely high-risk application for any manufacturing facility. Component failure inevitably leads to catastrophic safety hazards and extraordinarily costly downtime. A basic industrial tube simply cannot handle these violent thermal swings. You must treat a modern steam hose as a highly engineered, multi-layered pressure vessel. It continuously manages extreme thermal expansion and sudden contraction during operation. Evaluating proper steam hose construction ensures you select a genuinely reliable product. It will handle your specific pressure, temperature, and environmental demands seamlessly. This careful selection prevents explosive bursts and protects your facility personnel. In this comprehensive guide, we will break down the essential components of these specialized hoses. You will learn how inner tubes, reinforcement wires, and outer covers work together synergistically. Finally, we will show you how to match these complex constructions to your specific operational needs safely.
Key Takeaways
Anatomy: Proper steam hose construction relies on three synergistic layers—the inner tube, reinforcement, and outer cover—each serving a distinct structural purpose.
Material Matters: The inner tube material determines temperature and chemical resistance; an EPDM steam hose is the industry standard for saturated steam, but has strict limitations with oils.
Safety by Design: Features like high-tensile steel wire reinforcement and a "pin-pricked" outer cover are non-negotiable for venting trapped gases and preventing explosive bursts.
Decision Matrix: Selecting the right hose requires matching the construction directly to your steam type (saturated vs. superheated) and operating pressure.

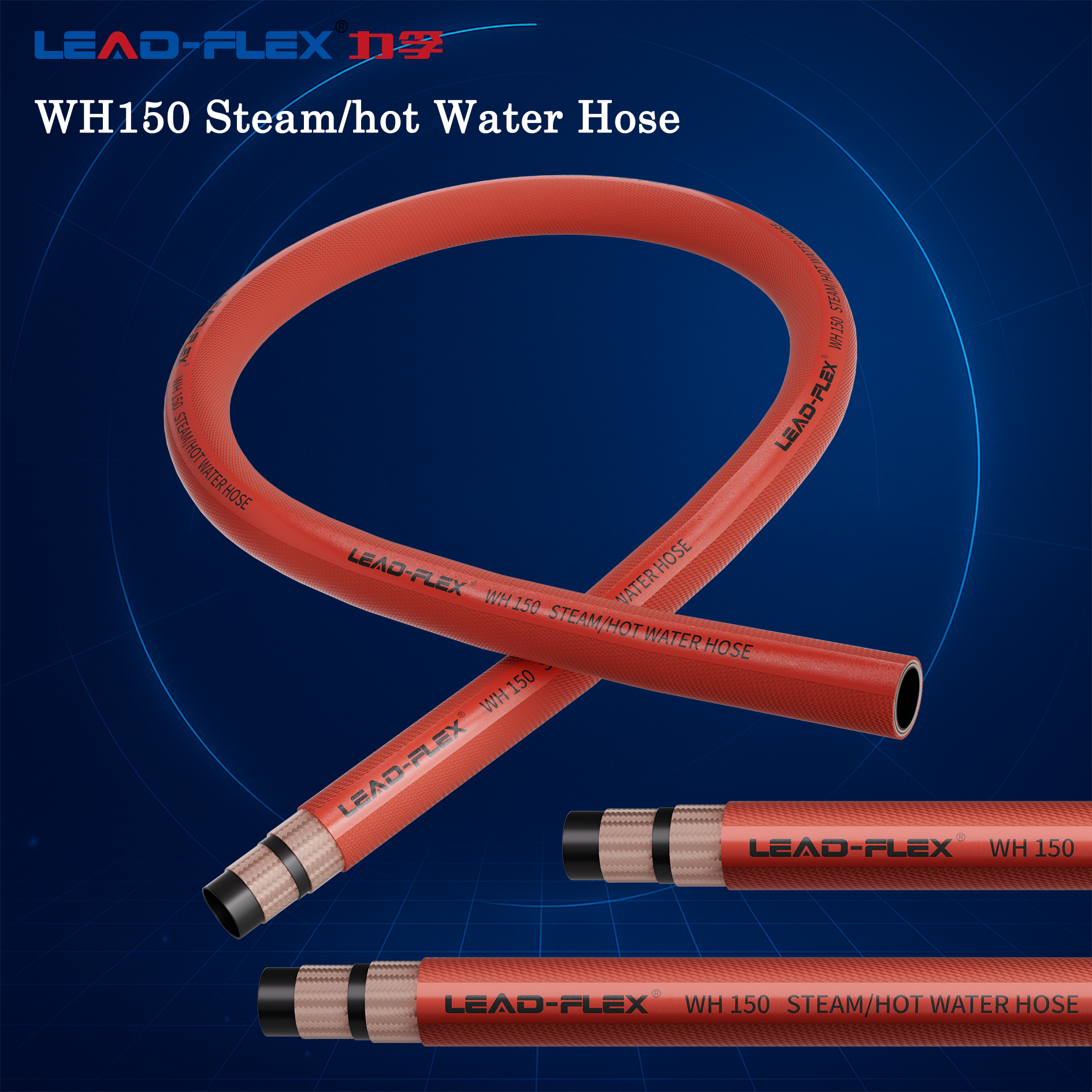

The Core of Safety: Anatomy of Steam Hose Layers
We directly connect physical hose anatomy to your operational reliability. Your facility depends on this equipment to maintain strict safety compliance. A blown hose creates immediate danger. It immediately halts your production lines without warning. You must understand how these components interact. They feature a synergistic three-part architecture.
Inner Tube: This layer directly contacts your media. It dictates the thermal boundaries of your entire assembly. It prevents early degradation from aggressive heat.
Reinforcement Layer: This acts as the structural skeleton. It dictates your maximum working pressure. It fundamentally prevents the tube from expanding under heavy loads.
Outer Cover: This serves as the primary protective shield. It defends structural integrity from hostile facility environments. It resists abrasions, chemical drips, and weather exposure.
We must highlight the pin-pricking imperative here. Manufacturers micro-perforate these covers intentionally. Steam permeates through the inner rubber during normal operation. Trapped steam gases build dangerous pressure. Pin-pricking allows this gas to escape safely. It prevents the cover from blistering. Blisters eventually blow out the entire wall. You must ensure your steam hose layers feature this critical safety mechanism.
Inner Tube Specifications: Evaluating EPDM vs. Alternative Compounds
You must evaluate inner tube materials carefully. Matching the compound to your specific media is crucial. The inner tube faces direct thermal assault continuously. We usually recommend an EPDM steam hose for standard applications. EPDM acts as the definitive industry default. It offers excellent heat resistance overall. It handles saturated vapor exceptionally well. Furthermore, it resists hardening over thousands of thermal cycles.
However, you might encounter different operational demands. Engineers sometimes specify chlorobutyl for specific high-heat scenarios. Chlorobutyl offers a longer operational life in high-heat environments. It performs remarkably well in continuous, heavy-duty applications.
You must watch out for one critical risk. Oil contamination destroys standard rubber compounds rapidly. EPDM degrades quickly upon direct exposure to oils. Oil-based lubricants or detergents cause severe swelling. If oil enters your line, standard construction fails. You risk a sudden and violent structural blowout. Facilities pumping oily media require specialized chemical solutions. You will need a nitrile-based or PTFE inner tube instead. Always audit your system's purity before making a purchase.
Reinforcement Engineering in a High Temperature Steam Hose
High temperatures weaken all rubber materials naturally. The reinforcement layer must bear the mechanical load. It supports the pressurized flow without suffering premature fatigue. You face a choice between wire braid and textile reinforcement. Textile reinforcement suits only extremely light-duty applications. You might use it for low-pressure washdown stations. It absolutely cannot handle intense industrial heat. High-tensile steel wire braiding is strictly mandatory. You need it for high-pressure industrial environments.
Engineers design these with single-wire or double-wire braids. A single-wire braid offers better overall physical flexibility. It provides a tighter bend radius for tight installation spaces. A double-wire braid handles significantly higher pressure ratings. It restricts movement but maximizes your burst protection. You must choose based on your specific physical routing needs.
Safety factors are an absolute operational priority. The industry standard requires a strict 10:1 safety factor. This ratio compares burst pressure against normal working pressure. A high temperature steam hose relies heavily on this wire skeleton. Steel reinforcement ensures the tube never exceeds its expansion limits. It protects workers from catastrophic sudden-release events effectively.
The Outer Cover: Defending Against Mechanical and Environmental Wear
The outer cover actively preserves your financial investment. It protects the lifespan of the underlying wire reinforcement. It acts as the first line of environmental defense. Manufacturers typically use EPDM or a synthetic rubber blend. They formulate these blends to resist atmospheric ozone. The cover also fights off severe weathering and heat oxidation.
Abrasion resistance remains a highly critical evaluation metric. Workers often drag hoses across rough concrete floors. Hoses constantly vibrate against sharp metal machinery edges. A robust cover withstands this daily mechanical abuse. It prevents harmful moisture from reaching the inner steel wires. Rusted wires lead directly to explosive pressure failures.
Industry color coding aids in quick visual identification. Facilities usually specify red or black covers. Permanent layline branding is equally important for compliance. Laylines display the maximum working pressure and temperature limits. They ensure completely safe replacement procedures. Maintenance teams use layline data for routine safety auditing. Clear branding prevents accidental misuse in high-pressure lines.
Saturated vs. Superheated Steam: Matching Construction to Application
Buyers must categorize their steam type accurately. You need this operational data before specifying any fluid power product. We divide applications into saturated and superheated categories.
Saturated vapor is most often called wet steam. Most standard products handle this physical state easily. Temperature and pressure share a direct, predictable relationship here. Liquid water remains present in the actual vapor mixture. Standard rubber compounds manage saturated environments quite reliably.
Superheated vapor presents a distinctly different danger. We commonly refer to this as dry steam. Superheated media runs at extraordinarily high temperatures. It greatly exceeds the boiling point for its given pressure. It contains absolutely no liquid water particles. A standard steam hose will fail quickly here. Dry heat bakes the standard EPDM inner tube. The rubber rapidly hardens, cracks, and eventually fragments. This failure happens catastrophically without any visual warning. You require an ultra-high temperature construction instead. Superheated systems often mandate metallic or specialized synthetic builds.
Rapid hardening, cracking, and catastrophic bursts.
Implementation Risks: Assembly, Couplings, and Maintenance
A perfectly constructed tube is completely useless otherwise. Incorrect assembly negates all built-in safety features. We must discuss coupling selection immediately. Standard band clamps are outright lethal on these systems. They cannot grip the wire reinforcement securely. Intense heat causes the rubber to flow and thin out. Band clamps quickly loosen and blow off violently. You must only use interlocking ground-joint couplings. Alternatively, use crimped fittings specifically rated for steam duty.
Installation geometry also dictates your daily operational safety. You must avoid bending the assembly immediately behind the coupling. Do not exceed the manufacturer's specified minimum bend radius. Tight bends severely stress the rigid steel reinforcement wires. They cause premature fatigue and localized wall thinning.
We recommend strict visual inspection criteria for your maintenance routines:
Check daily for outer cover blisters or bubbling.
Look closely for any exposed or rusted wire braiding.
Inspect the coupling area for microscopic fitting slippage.
Feel the tube for unnatural stiffening or hardening.
You must pull stiff assemblies from service immediately.
Conclusion
Proper steam hose construction demands a highly precise balance. It requires chemical resistance directly on the inner layer. It needs robust structural integrity from the steel reinforcement. It demands heavy environmental defense from the outer cover. You must treat these assemblies with extreme technical respect.
We advise buyers to conduct a strict system audit. You should verify your system's maximum operational pressure. You must measure the absolute maximum ambient temperature. You have to confirm your exact steam state. Distinguish clearly between saturated and superheated media. Use this shortlisting logic before making any purchasing decision.
Your next step is purely action-oriented. Reach out to a certified fluid power specialist today. Alternatively, consult your internal engineering team. Have them spec the exact assembly for your facility. Always insist on interlocking couplings for maximum safety.
FAQ
Q: Why do steam hoses have pin-pricked covers?
A: To vent permeated steam gases and prevent the outer rubber from blistering and bursting.
Q: Can I use a standard EPDM steam hose for superheated steam?
A: No. Superheated steam will bake standard EPDM, causing it to harden, crack, and fail catastrophically. Specialized materials are required.
Q: What is the standard safety factor for a steam hose?
A: The industry standard is typically a 10:1 ratio between burst pressure and maximum working pressure, given the extreme hazards of steam.
Q: How often should industrial steam hose assemblies be inspected?
A: Daily visual inspections prior to use, checking for cover damage, leaking at the coupling, or loss of flexibility, with scheduled hydrostatic testing based on usage severity.
