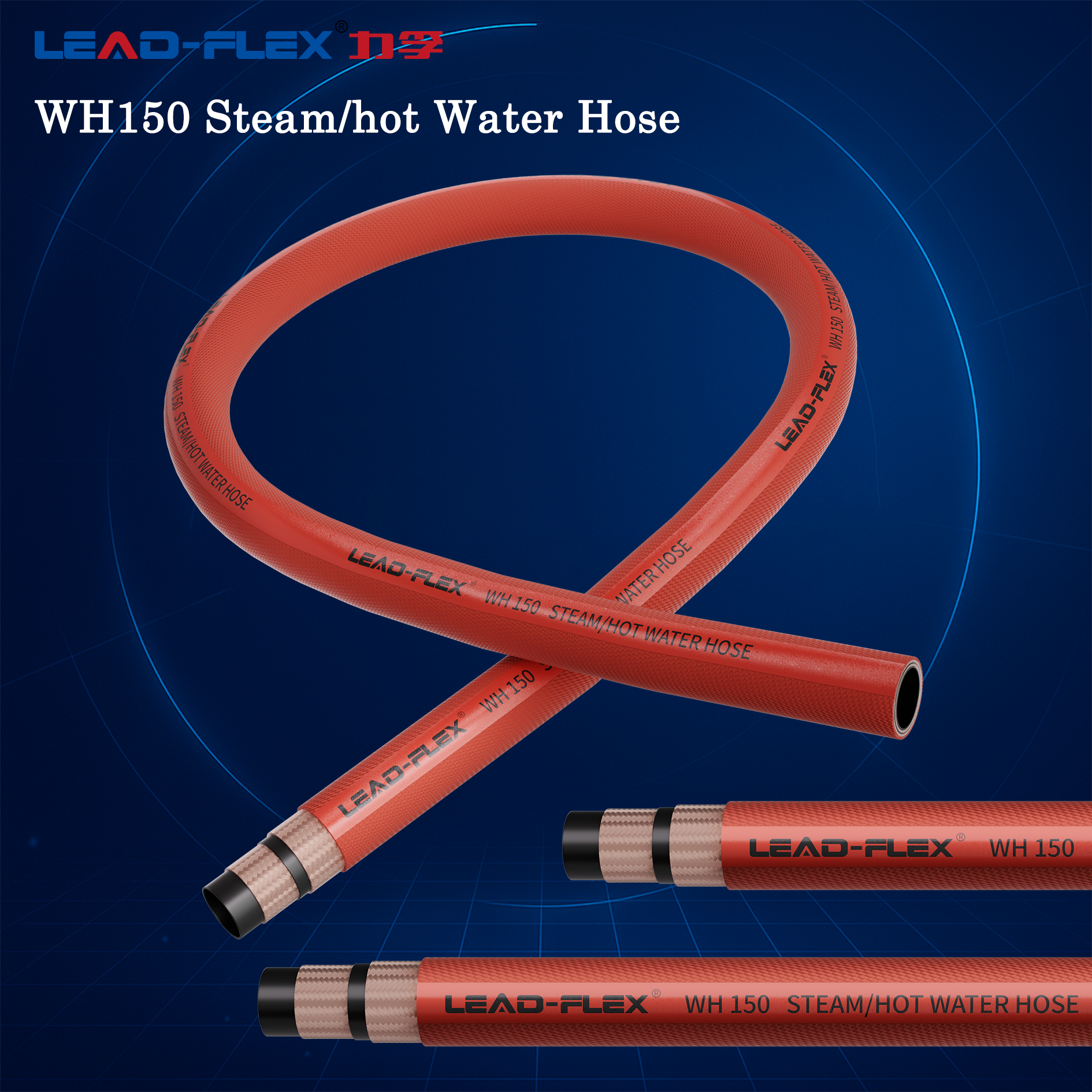

Industrial steam applications carry incredibly high stakes in any modern facility. Selecting the wrong steam hose diameter isn't just a minor inefficiency. It represents a critical safety hazard. It also acts as a primary driver behind premature equipment failure. Engineers and procurement teams face a demanding problem every day. You must expertly balance strict flow rate requirements against unyielding pressure limitations. Furthermore, you need to navigate complex physical routing constraints across crowded factory floors. Objectively evaluating these specifications is essential for maintaining safe, continuous operations. In this guide, we explore how to calculate your required internal dimensions accurately. We will outline exactly how you can avoid common procurement pitfalls when sourcing industrial assemblies. By applying these strict engineering principles, you protect your workforce. You also ensure your process heating systems run at optimal capacity without dangerous pressure drops.
Key Takeaways
Size Dictates Performance: The internal diameter (ID) determines steam velocity and pressure drop, directly impacting heating efficiency.
Oversizing Wastes Energy: Too large a diameter increases heat loss and condensate buildup; too small accelerates core tube erosion.
Safety & Specs are Linked: Diameter strictly limits the maximum working pressure of a high temperature steam hose.
System Integration Matters: The chosen diameter must align with existing pipework, required bend radii, and specific steam coupling standards.
1. The Operational Costs of Incorrect Steam Hose Sizing
Every facility pays a steep price for poor sizing choices. Undersizing and oversizing both trigger a cascade of operational failures. Understanding these physical reactions helps you justify precise engineering calculations.
Undersizing Risks (Choked Flow)
An undersized internal dimension forces vapor to travel at excessive velocities. This creates choked flow. High-velocity vapor generates extreme friction against the inner tube. In elastomeric materials, this causes a destructive phenomenon known as "popcorning." The fast-moving vapor penetrates microscopic pores in the rubber. When the system cools down, this trapped vapor condenses into liquid water. During the next startup, rapid heating causes that trapped water to flash back into vapor violently. It expands and blows chunks of rubber out of the inner tube. Furthermore, undersized assemblies cause severe pressure drops at the point of use. Your downstream equipment simply starves for thermal energy. The system works harder but delivers worse results.
Oversizing Risks (Thermal Inefficiency)
Oversizing presents entirely different but equally destructive challenges. A massive internal volume slows down the delivery speed. It exponentially increases the internal surface area exposed to ambient temperatures. This accelerates radiant heat loss. As heat escapes rapidly, vapor condenses into liquid water inside the line. Excessive condensation leads directly to water hammer. Slugs of heavy liquid travel at high speeds and slam into valves, elbows, and manifolds. This physical impact destroys infrastructure. It shatters fittings and ruptures seals. You lose efficiency, and you break expensive components.
Financial Impact
The true financial impact extends far beyond replacing a damaged steam hose. You face massive system downtime while maintenance crews scramble. Energy loss eats into daily operational margins. Most importantly, premature ruptures create severe safety incident liabilities. A blown thermal line endangers nearby workers. Facility managers must view proper sizing as a non-negotiable safety investment.
Best Practice: Audit your thermal lines annually. Check for pressure drops across long runs. Replace lines immediately if you spot exterior cover blistering.
2. Core Evaluation Dimensions for Steam Hose Selection
You need an objective framework to evaluate technical requirements. Industry professionals rely on proven methodologies to prevent dangerous mismatched components. Applying a structured approach guarantees safe system integration.
The STAMPED Framework Adaptation
The standard STAMPED framework guides objective procurement decisions. It stands for Size, Temperature, Application, Material, Pressure, Ends, and Delivery. We adapt this specifically for thermal vapor systems. Size dictates thermodynamic flow. Temperature differentiates specific phase states. Pressure defines structural reinforcement limits. steam hose selection relies entirely on documenting these exact parameters before contacting a supplier. Guesswork leads directly to catastrophic blowouts.
Steam Hose ID vs. OD
You must separate internal and external measurements during calculations. We rely exclusively on the steam hose ID (Internal Diameter) for mathematical flow calculations. The internal dimension directly governs volumetric capacity and pressure drop. Conversely, the Outer Diameter (OD) does not impact internal flow characteristics at all. You evaluate the OD purely for coupling compatibility. You also check OD to ensure routing clearance through structural bulkheads or protective conduit sleeves.
Saturated vs. Superheated Steam
The physical state of your vapor dictates severe material limits. Saturated vapor contains moisture. Superheated vapor is a dry, extremely hot gas. Saturated systems often operate safely with EPDM rubber cores. However, superheated systems degrade EPDM rapidly. They require Chlorobutyl or specialized PTFE composites. These advanced material restrictions heavily limit available diameter options in the commercial market. You must confirm your phase state before selecting a size.
3. Calculating the Right Steam Hose Diameter
Proper calculation removes operational risks. Do not guess. Do not rely on outdated rules of thumb from older technicians. Modern systems demand precise mathematical sizing based on specific facility variables.
Required Variables
Calculating the correct dimension requires three specific data points from your facility. First, determine the mass flow rate. Plant engineers usually measure this in pounds per hour (lbs/hr) or kilograms per hour (kg/hr). Second, confirm the maximum operating pressure at the manifold source. Third, define your target velocity based on equipment demands. Without these three exact variables, any selection remains a dangerous guess.
Using Sizing Charts and Nomographs
Engineering nomographs help cross-reference these complex data points quickly. You match target velocity against acceptable pressure drop tolerances. This intersection pinpoints the exact internal dimension required. Insist on mathematical sizing derived from application-specific pressure drops. Many manufacturers provide interactive digital calculators. Use them to validate manual chart readings.
Accounting for Length
Longer runs generate cumulative frictional resistance. Frictional loss causes gradual pressure drops along the entire assembly. You may require a slightly larger diameter to compensate for long-distance routing. A short jumper line behaves differently than a fifty-foot transfer line. Always factor total assembly length into your final pressure calculations.
Table: Sizing Verification Variables
Variable
Common Unit of Measure
Impact on Selection
Mass Flow Rate
lbs/hr or kg/hr
Determines baseline internal volume required.
Operating Pressure
psi or bar
Dictates necessary reinforcement layers and wall thickness.
Target Velocity
ft/sec or m/sec
Prevents internal tube erosion (popcorning).
Overall Length
feet or meters
Highlights potential frictional pressure loss.
4. Cross-Evaluating Diameter Against Pressure and Temperature Ratings
A mathematically perfect dimension means nothing if the physical structure cannot contain the required pressure. You must cross-evaluate your calculated size against strict manufacturing realities.
The Size-to-Pressure Inverse Relationship
A fundamental inverse relationship dictates safety limits. As a high temperature steam hose increases in diameter, its maximum allowable working pressure (MAWP) typically decreases. Larger internal surface areas multiply outward radial stress. The steel wire reinforcement layers must work significantly harder to contain the same pressure profile. A two-inch assembly will almost always have a lower pressure rating than a half-inch assembly made of identical materials.
Safety Factors
Industry standards demand rigorous safety ratios to prevent injury. Thermal systems commonly mandate a 10:1 safety factor. Standard hydraulic or water systems only require a 4:1 ratio. Diameter directly impacts burst pressure testing limits. A massive internal dimension drops the burst threshold significantly. Always consult NAHAD guidelines when verifying safety factors for large-bore lines.
Material Constraints
High-pressure requirements combined with large diameters often stretch rubber limitations. You might cross the safety threshold of standard elastomeric materials entirely. In these cases, engineers must shift to alternative constructions. Corrugated stainless steel assemblies offer excellent high-pressure containment at larger sizes. PTFE-lined alternatives also handle high-pressure, large-diameter demands effectively while resisting chemical degradation.
Common Mistake: Ignoring safety factor degradation when upgrading facility pressure. A slight pressure bump might push a large-diameter line past its 10:1 safety ratio. Always recalculate limits after system upgrades.
5. Implementation Risks and Routing Realities
Calculations on paper often clash with physical reality on the factory floor. You must validate your theoretical dimension against actual environmental constraints. Physical stress destroys assemblies just as quickly as thermal stress.
Bend Radius Limitations
Larger diameter assemblies are significantly stiffer. They naturally resist bending. Warn your installation teams against forcing mathematical perfection into impossible spaces. A technically perfect dimension fails completely if it cannot route through a confined workspace. Forcing a stiff, large-bore line into a tight bend causes severe kinking. Kinking crushes the wire braid reinforcement. This ruins the structural integrity and creates an immediate blowout hazard.
Coupling and Clamping Integrity
Larger hoses require vastly more robust retention systems. Standard crimps often fail under heavy thermal cycling on large lines. Band clamps offer insufficient grip strength. You must mandate interlocking bolted clamps. Boss-style fittings physically lock onto the heavy exterior collar. This mechanical interlock prevents blow-offs under intense pressure and vibration.
Weight and Ergonomics
Evaluate operator fatigue carefully for manual applications. Washdown stations require constant operator handling. Manual lancing tasks demand physical maneuverability. A heavy, large-diameter, fluid-filled assembly exhausts workers rapidly. It reduces productivity and increases the risk of dropping a live thermal line. Use the smallest acceptable dimension for manual operations to reduce physical strain. Every pound matters when an operator maneuvers a live line.
6. Shortlisting Logic and Next-Step Actions
Translating engineering data into procurement action requires extreme caution. The marketplace contains misleading product specifications. You must read technical sheets defensively to protect your facility.
Evaluating Manufacturer Spec Sheets
Verify ratings closely. Check if a manufacturer specifies actual vapor usage. Many deceptive specification sheets highlight general high-temperature water ratings instead. Hot liquid and vapor behave entirely differently. A product rated for 300°F hot water will fail catastrophically under 300°F saturated vapor. The expansion dynamics destroy standard reinforcement. Always confirm explicit vapor ratings. Refuse products lacking clear phase-state documentation.
Procurement Checklist
Provide a definitive, simple checklist to your supplier. Clear communication prevents dangerous buying errors. Hand them these specific requirements:
Application Type: State whether the line serves continuous flow, intermittent washdown, or static vibration dampening.
Calculated Constraints: Provide the calculated internal dimension and the maximum allowable outer dimension for existing infrastructure.
Operating Limits: List the absolute maximum operating pressure and the peak temperature spikes.
Required End Fittings: Specify flanged, threaded, or interlocking boss-style sanitary connections.
Conclusion
Proper sizing requires discipline. First, calculate your required internal dimension based on specific mass flow rates and target velocities. Next, rigorously verify this dimension against the manufacturer's maximum allowable working pressure and temperature limits. Finally, validate the physical routing constraints, bend radii, and ergonomic realities on your factory floor. Following this structured framework protects your workforce and prevents catastrophic equipment failures.
Take the guesswork out of your thermal fluid dynamics. Consult a technical sales engineer today. Bring your specific flow rate and pressure data to the discussion. An expert can configure the optimal assembly for your exact infrastructure. Use proprietary sizing calculators provided by trusted manufacturers to secure safe, reliable, and continuous performance for your facility.
FAQ
Q: What happens if my steam hose diameter is too small?
A: An undersized internal dimension forces vapor to travel at excessive velocities. This creates severe internal friction and rapid pressure drops at the point of use. High velocity also forces moisture into inner tube pores. This causes "popcorning" and accelerates structural failure. Your equipment ultimately starves for adequate thermal energy.
Q: Does the outer diameter (OD) affect the steam flow?
A: No, the outer diameter has zero impact on internal flow rates or thermal efficiency. OD only affects cover thickness, fitting compatibility, and external abrasion resistance. You evaluate OD solely to ensure physical clearance through bulkheads and proper clamp selection.
Q: Can I use a standard hot water hose for steam if the diameter matches?
A: Absolutely not. This represents a severe safety risk. Hot water and steam possess vastly different phase-change dynamics and thermal energy properties. Vapor penetrates standard rubber compounds rapidly. A hot water specification cannot withstand vapor expansion. You must strictly use an explicitly rated vapor assembly.
Q: How does bend radius relate to steam hose ID?
A: They share a direct, exponential correlation. As the internal dimension increases, the overall assembly becomes significantly thicker and stiffer. Larger internal volumes require exponentially larger minimum bend radii. Forcing a large assembly into a tight curve guarantees structural failure, kinking, and compromised wire reinforcement.
