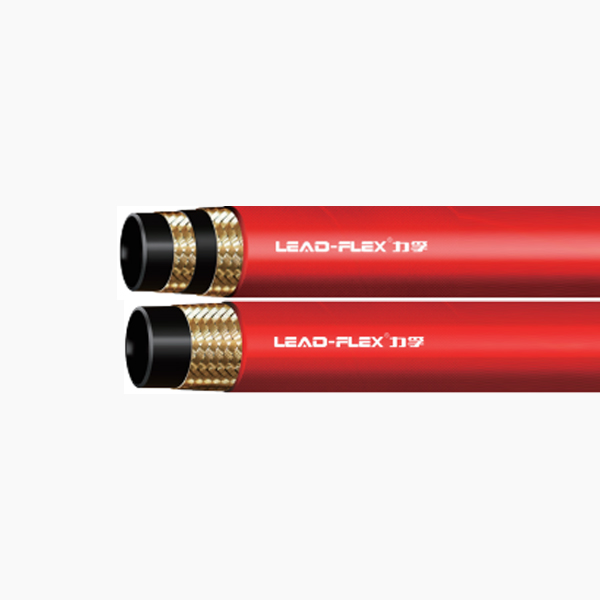

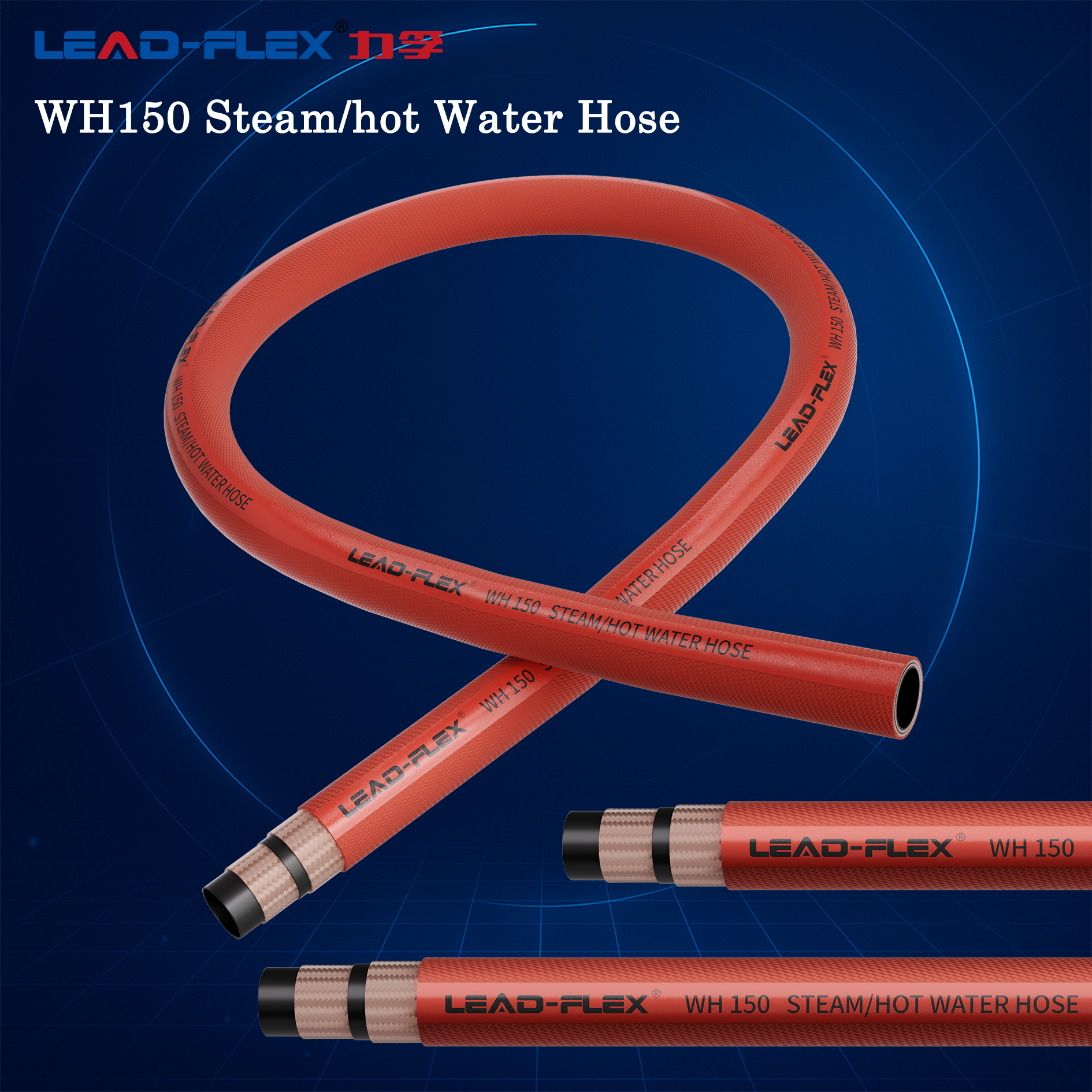

Selecting a steam hose goes far beyond standard industrial procurement. It represents a critical safety and operational compliance decision in your facility. Steam is notoriously dangerous. Misreading specifications can easily lead to catastrophic failures, severe injuries, and costly unplanned downtime. Standard catalog descriptions complicate this process. They often blend marketing claims with raw technical data, making it hard to identify actual performance limits. Relying on generic specifications exposes your team to hidden risks.
This guide decodes the non-negotiable steam hose specifications you need. You will learn how to evaluate vendors, ensure system compatibility, and mitigate implementation risks effectively. We will explore dimensional accuracy, pressure limits, bend radius requirements, and material temperature constraints.
Key Takeaways
Safety Factors are Non-Negotiable: Steam applications mandate a strict 10:1 ratio between Burst Pressure (BP) and Working Pressure (WP).
Dimensions Dictate Fit: Inner Diameter (ID) controls steam flow, while precise Outer Diameter (OD) alignment is mandatory for secure coupling.
Routing Realities: Exceeding the minimum bend radius causes invisible structural damage, drastically reducing hose lifespan.
Temperature Trumps Pressure: Evaluating a high temperature steam hose requires matching materials (like EPDM) specifically to the steam state (saturated vs. superheated).
The Business Impact of Accurate Steam Hose Selection
Steam transfer operates under extreme conditions. Relying on generic industrial hoses creates immediate hazards. You risk severe compliance failures and safety incidents. Proper specification reading prevents these avoidable disasters.
Let us detail the failure modalities. When you misalign specifications, several things go wrong. Pop-corning occurs when steam permeates the inner rubber tube. Rapid cooling traps condensation inside the walls. Upon reheating, this trapped moisture expands violently. It rips chunks of rubber from the inner lining. This debris then travels downstream, clogging valves and traps.
Structural blowouts also happen when you ignore temperature limits. Heat degrades the reinforcement layer over time. Compromised coupling retention is another major threat. Incorrect sizing prevents secure crimping. A blown coupling acts as a deadly projectile in a busy factory environment.
What defines success? Verifiable safety certifications validate your choice. Look for ISO 6134 compliance, which specifically governs rubber hoses for steam. Predictable replacement cycles keep operations stable. A well-specified hose reduces liability and protects your workforce. It allows maintenance teams to schedule replacements proactively rather than reacting to dangerous ruptures.
Decoding Steam Hose Dimensions: ID, OD, and System Compatibility
Dimensions determine both performance and safety. You must evaluate every measurement carefully to avoid flow restrictions or coupling failures.
Inner Diameter (ID) and Flow Dynamics
Inner Diameter (ID) controls internal flow dynamics. It determines steam velocity and total volume delivery. Undersizing the ID creates severe operational risks. It causes excessive pressure buildup and internal friction. This generates unwanted heat and stress on the system piping. It forces your boiler to work harder.
Oversizing brings completely different problems. It allows steam to expand too rapidly inside the line. This leads to condensation and dangerous water pooling. When high-velocity steam hits pooled water, it causes a "water hammer" effect. This violent shockwave damages fittings and shatters valves.
Outer Diameter (OD) and Coupling Integrity
Outer Diameter (OD) secures coupling integrity. We must treat OD as a primary specification. Accurate steam hose dimensions guarantee a proper fit. Incompatible OD leads directly to improper crimping or clamping. This remains the number one cause of hose-end blowouts.
Couplings require exact OD measurements to grip the hose securely. Even a variance of a few millimeters compromises the seal. Steam will inevitably escape through these micro-gaps. The resulting leak poses severe scalding hazards to nearby operators.
Concentricity Requirements
Concentricity matters just as much as basic diameter. It measures the uniform wall thickness between the ID and OD. Poor concentricity creates hidden weak points. These thin sections will rupture under high steam pressure. Always demand high concentricity tolerances from your manufacturer.
Common Steam Hose Dimensions and Flow Capacities
Inner Diameter (ID)
Outer Diameter (OD)
Typical Application Use Case
1/2 Inch (12.7 mm)
0.94 Inch (24.0 mm)
Light-duty tracing and equipment cleaning
3/4 Inch (19.1 mm)
1.22 Inch (31.0 mm)
Standard factory steam drops
1 Inch (25.4 mm)
1.50 Inch (38.0 mm)
High-volume transfer lines
2 Inch (50.8 mm)
2.64 Inch (67.0 mm)
Heavy industrial main supply headers
Pressure Ratings Explained: Working Pressure (WP) vs. Burst Pressure (BP)
Understanding pressure ratings prevents catastrophic ruptures. You cannot treat steam like compressed air or water. The thermal energy changes everything.
Working Pressure (WP) Basics
Working Pressure (WP) defines the continuous operational limit. You must evaluate WP alongside temperature limits. Steam pressure limits drop significantly as temperatures rise. A hose rated for 250 psi at ambient temperature cannot handle 250 psi of live steam.
You must account for system pressure drops and fluctuations. Systems rarely maintain perfectly static pressure. Your chosen WP must accommodate the absolute peak pressure. Never rely on just the average system pressure readings. Boilers cycle on and off, creating pressure spikes.
Burst Pressure (BP) and The 10:1 Rule
Burst Pressure (BP) follows the strict 10:1 rule. Steam hoses require a non-negotiable 10:1 safety factor. This means BP must be exactly ten times the WP. Standard hydraulic or water hoses only use a 4:1 factor.
Why does steam require this massive difference? Steam expands exponentially if a rupture occurs. Water simply leaks, but steam flashes into a violent cloud. The 10:1 ratio accounts for material fatigue. Extreme heat cycling degrades rubber over time.
We strongly advise buyers to stay skeptical. Reject vendors who hide their testing temperatures. They must publish both WP and BP clearly.
Best Practice: Always install pressure relief valves upstream from the hose connection.
Common Mistake: Ignoring sudden pressure spikes caused by rapidly closing downstream valves.
Best Practice: Log the exact operating pressure daily to monitor system health.
Minimum Bend Radius: Mitigating Installation Risks
Proper routing extends equipment lifespan dramatically. Ignoring bend radius limitations destroys expensive hoses in weeks.
Defining Bend Radius
Bend radius refers to a critical physical measurement. It represents the smallest radius a hose can bend without structural degradation. Engineers measure this from the inside edge of the curve. Every manufacturer publishes this metric for their specific models.
The Cost of Kinking
The physical cost of kinking is severe. Forcing a tight bend stretches the outer wall. It simultaneously compresses the inner wall. This action compromises the internal wire braid or steel helix reinforcement. The wire strands rub together, fatigue, and eventually snap.
Internal crimping restricts steam flow significantly. This restriction causes localized heat buildup at the kink. The rubber compound degrades rapidly at this stress point. A blowout becomes inevitable.
Routing Guidelines for Facilities
Follow strict routing guidelines to ensure safety. Evaluate your facility's routing requirements early. You should do this before finalizing your steam hose selection. Avoid stressing the critical connection points near the couplings.
Use 45-degree or 90-degree angled fittings to navigate tight corners safely. Never force a straight hose into a severe curve. Support long horizontal runs using proper saddles or slings. Do not let hoses hang freely over sharp edges.
Temperature Limits: Evaluating Saturated vs. Superheated Steam
Temperature destroys rubber faster than pressure. Identifying your exact steam state dictates your material choice.
The State of Steam
You must understand the physical state of your steam. Saturated steam is commonly called "wet" steam. It maintains a constant temperature and pressure correlation. If pressure rises, temperature rises predictably. Most industrial heating applications utilize saturated steam.
Superheated steam is "dry" steam. It reaches extremely high temperatures independent of pressure. Power generation and turbine applications typically use superheated steam. It contains zero moisture.
Material Evaluation
Material evaluation depends entirely on this physical state. EPDM inner tubes serve as the industry standard. They handle saturated steam effectively up to approximately 406°F (210°C). The moisture in saturated steam prevents the EPDM from drying out completely.
However, EPDM fails quickly under superheated conditions. The dry heat vulcanizes the rubber further. It becomes hard, brittle, and prone to shattering. You must assess PTFE or specialized synthetic compounds for superheated dry steam.
Beware of "universal" temperature claims. A high temperature steam hose must explicitly state its specific steam type rating. Always verify the exact temperature testing conditions.
Saturated vs. Superheated Steam Comparison Chart
Steam Type
Moisture Content
Temperature Behavior
Recommended Hose Material
Saturated Steam
High (Wet)
Tied directly to pressure
EPDM / Chlorobutyl
Superheated Steam
Low (Dry)
Independent of pressure
PTFE / Specialized Compounds
A Framework for Steam Hose Selection (The STAMPED Method)
You need a reliable system to evaluate options. The STAMPED method provides a rigorous shortlisting tool. It helps decision-makers evaluate safety and performance effectively across different vendors.
Let us break down the STAMPED evaluation framework:
S - Size: Check ID, OD, and overall length. Ensure the OD matches your specific coupling requirements perfectly.
T - Temperature: Evaluate both internal steam temperature and the external environment temperature. Extreme ambient cold affects hose flexibility.
A - Application: Define specific conditions. Is it indoor or outdoor? Will operators flex it continuously, or will it remain static?
M - Material: Choose your inner tube carefully. Select EPDM for saturated steam or PTFE for superheated steam. Verify the steel wire reinforcement structure.
P - Pressure: Confirm the WP limit. Verify the mandatory 10:1 BP safety factor exists on the spec sheet.
E - Ends: Specify interlocking clamp types or factory-crimped fittings. Never use standard band clamps for steam lines.
D - Delivery: Request formal testing and certification documentation. Confirm ISO standard compliance before finalizing the purchase.
We recommend actionable next steps for your engineering teams. Demand comprehensive batch testing certificates from suppliers. Avoid unbranded hoses completely. Never use visually modified or repaired hoses for steam transfer. If the outer cover shows damage, replace the entire assembly immediately.
Conclusion
Reading specifications correctly is a vital exercise in risk management. Dimensions dictate your system fit. Pressure ratings ensure initial survival. Proper bend radii and temperature limits dictate overall lifespan. Ignoring any single metric compromises the entire system.
Take action today to protect your facility. We encourage you to audit your current inventory against the STAMPED framework. Identify any undocumented components or aging assemblies. Contact a specialized application engineer to review your unique system demands. Proper specification eliminates guesswork and ensures total operational safety.
FAQ
Q: Why is the safety factor for steam hoses 10:1 instead of 4:1?
A: Steam expands exponentially when a hose ruptures, creating a severe explosive and scalding hazard. The 10:1 ratio accounts for material fatigue from extreme heat cycling that degrades the hose over time.
Q: Can I use a high-temperature water hose for steam applications?
A: No. Hot water hoses are not designed to withstand the latent heat, phase changes, or the pop-corning effect that occurs when steam permeates the hose lining and rapidly cools.
Q: How do I calculate the bend radius needed for my facility?
A: Measure the inside curve of the required route. Compare this to the manufacturer’s published minimum bend radius. If your route is tighter than the spec, you must alter the piping or use angled fittings—never force the hose to bend.
Q: What is the difference between working pressure and operating pressure?
A: They are functionally similar, representing the maximum continuous pressure the system should reach. However, steam hose WP must be evaluated alongside the system's maximum temperature, as pressure limits drop as temperatures rise.
